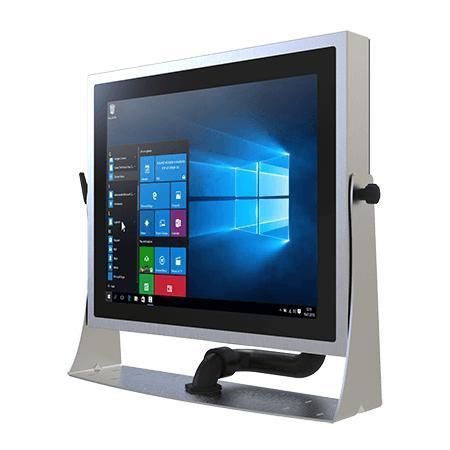

PCAP touchscreen panel PC R19IAD3S-SPM169-P1

multitouch screen19"Intel® Core i5-1235U

Overview
The R19IAD3S-SPM169-P1 is a 19.0-inch stainless steel Panel PC with full IP69K protection, designed for production environments requiring regular high-pressure, high-temperature washdowns and strict hygiene procedures. It is suited to food, beverage and chemical applications where sealed housing and easy cleaning are mandatory.

Extra Protection with Conduit Pipe
The unit is supplied with a pre-installed waterproof conduit pipe and sealing elbows to protect peripheral cables and connectors, reducing downtime and improving system longevity in wet or washdown areas.

Projected Capacitive Touchscreen
Equipped with a projected capacitive (PCAP) multi-touch screen that supports multi-finger gestures (rotate, drag-and-drop, pinch-to-zoom) and Glove / Rain touch modes for reliable input in production conditions.

Key features

• Intel® Core™ i5-1235U (12th Gen, 3.3 GHz, up to 4.40 GHz)
• Fanless cooling design
• SUS316 / AISI 316 stainless steel enclosure
• Full IP69K waterproof rating
• True flat, edge-to-edge front surface for easy cleaning
• Waterproof sealed conduit pipe pre-installed
• VESA mount standard; optional Yoke mount stand
• Supports Glove / Rain touch mode
• Optional optical bonding

Specifications
Display

• Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 376.32 x 301.06 mm

System Specification

• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB (Default); optional 16GB or 32GB
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (Dual Gigabit LAN)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro 64-bit / Linux Ubuntu 22.04 (optional; Ubuntu does not support Wake on Touch)

Mechanical

• Dimension: 468 x 395 x 57 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing (SUS316 / AISI 316)
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K

Certification

• CE, FCC

IO Ports

• USB: 2 x USB 3.2 Gen1x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x Giga LAN RJ45
• Video: 1 x HDMI 1.4
• Indicator: 1 x LED indicator on power button

Control

• Button: 1 x Power Button

Accessory (included)

• 1 x Waterproof conduit 1.5 m
• 1 x Waterproof conduit 0.3 m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x D-sub9 (male) to RJ45 adapter
• 1 x D-sub9 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessory

• Open wire cable for phoenix connector
• Yoke mount stand kit

Power

• Power Rating: 12V DC in

Technical specifications

• Model: R19IAD3S-SPM169-P1
• Brand: Winmate
• Series: IP69K Stainless P Series Panel PC
• CPU: Intel® Core™ i5-1235U (12th Gen)
• Display: 19.0" 1280 x 1024 PCAP, 250 nits
• Memory (default/option): 8GB (Default); 16GB / 32GB optional
• Storage (default/option): 128GB SSD (Default); up to 4TB optional; SATA III bay for 2.5" drive
• Network: Dual Gigabit Ethernet
• Front Protection / Material: IP69K, SUS316 / AISI 316 stainless steel
• Operating Temp / Humidity: 0°C to 45°C / 10%–90% RH non-condensing
• Mounting: VESA (default) / Yoke (optional)
• Certifications: CE, FCC
