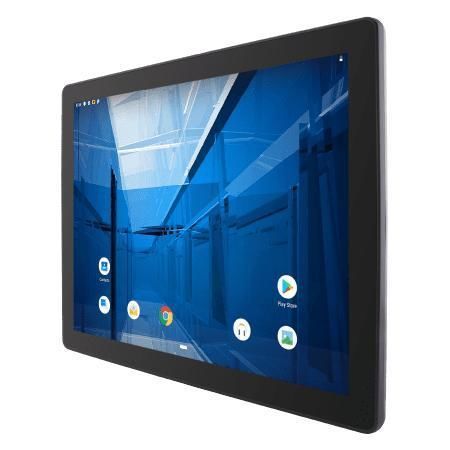

Multitouch screen panel PC R15IM3S-PTC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IM3S-PTC3 is a 15-inch PT Series HMI Panel PC for machine control, factory automation and operator stations. It integrates an energy-efficient ARM A53 quad-core processor, a projected-capacitive multi-touch display, fanless cooling and front IP65 protection for reliable field operation and long lifecycle availability.

Key features

• 15.0-inch 1024 x 768 display with Projected Capacitive (P-CAP) multi-touch
• ARM A53 Quad Core 2.0 GHz processor
• Fanless design and ultra-low power consumption
• Onboard 32 GB eMMC storage and 4 GB LPDDR4 memory
• Default Android 11 (upgradeable); optional Linux distributions
• Front panel protection IP65
• Universal mounting including VESA; optional PoE PD (IEEE 802.3at)

Product highlights
Energy-efficient ARM platform: ARM A53 provides adequate HMI compute performance with low power draw, simplifying integration for Android-based applications.

True-flat, easy-to-clean front: flush glass surface reduces dust accumulation and facilitates maintenance in industrial environments.

Flexible installation: supports VESA and multiple mounting options for panel, wall, desk or in-vehicle use.

P-Cap touch with durable glass: multi-touch input, scratch-resistant cover glass and reliable touch response for operator interfaces.

Front IP65 protection: sealed front fascia protects against dust and splashes for use in harsher production areas.

Certifications
CE, FCC, Front IP65

Accessories
Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3-pin terminal block to DC jack

Software & OS
Default: Android 11 (upgradeable to Android 13). Optional: Linux Yocto 5.15.47 with Qt 5.15; Linux Ubuntu Server 22.04.

Use cases
Industrial HMI, machine control, factory automation operator stations, OEM and system integrator deployments requiring low-power, field-proven HMI hardware.

Technical specifications

• Display — Size: 15.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display — Resolution: 1024 x 768
• Display — Panel Brightness: 350 nits
• Display — Contrast Ratio: 800:1
• Display — View Angles: 80, 80, 70, 80
• Display — Active Area: 304.128 x 228.096 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: Onboard eMMC 32 GB
• Operating System: Android 11 (upgradeable to Android 13) — default; optional Linux Yocto 5.15.47 with Qt 5.15; optional Linux Ubuntu Server 22.04
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• Dimensions: 352.5 x 276.7 x 45.45 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling System: Fanless design
• USB Ports: 2 x USB 2.0, 1 x USB OTG
• Serial Port: 1 x RS232 (default) / 422 / 485
• LAN: 1 x RJ45, optional PoE (PD, IEEE 802.3at)
• Audio: 2 x Speaker
• SD Card Slot: 1 x Micro SD (max 32 GB)
• Power Rating: 12V DC with terminal block
• PoE: Power Device (PD), IEEE 802.3at (25 W)
• Buttons / Controls: 1 x Power Button, 1 x Reset Button
