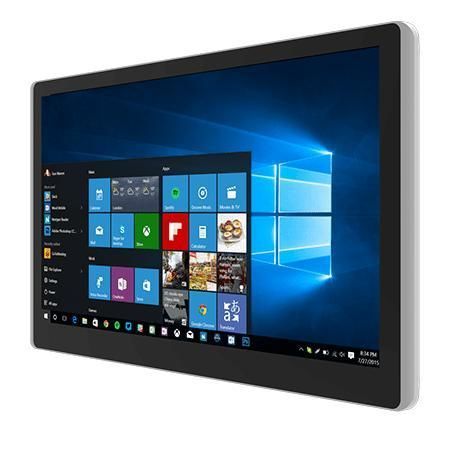

Multi-touch screen panel PC W15IE3S-PTA3

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15IE3S-PTA3 is a 15.6-inch PT Series HMI touch panel PC powered by Intel® Celeron® (Elkhart Lake) processors, designed for machine control, factory automation and operator HMI applications. It targets industrial buyers, OEMs and system integrators seeking an energy-efficient, fanless, and front-IP65 protected HMI solution with long lifecycle availability.

Key Features

• Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
• Fanless cooling system and ultra-low power consumption
• Front IP65 for protection against water and dust
• True flat, easy-to-clean front surface with edge-to-edge design
• Projected capacitive (P-Cap) multi-touch screen resistant to scratches and supporting multi-touch

Highlights

• Energy-efficient Intel® processor options for stable, low-power operation
• True flat surface for easy cleaning and reduced dust ingress
• Comprehensive mounting options including VESA for wall/desk/in-vehicle installation
• Flexible storage and expansion: M.2 and SATA III support
• TPM 2.0 security and optional wireless connectivity
• Fanless design for silent, maintenance-free operation

Certifications

• CE
• FCC

Technical Specifications

• Model: W15IE3S-PTA3
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Size: 15.6 inches
• Display — Resolution: 1920 x 1080
• Display — Panel Brightness: 400 nits
• Display — Contrast Ratio: 800:1
• Display — View Angles: 85,85,85,85
• Display — Active Area: 344.16 x 193.59 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz) (Default); Intel® Celeron® N6210 (up to 2.6 GHz) (Optional)
• Memory: 1 x SO-DIMM, DDR4 3200 MHz, 4 GB (Default); optional 8 GB, 16 GB
• Storage: 1 x M.2 2242 B-key SSD 128 GB (Default); M.2 2242 B-key SSD up to 512 GB (Optional); 1 x SATA III for 2.5" SSD/HDD up to 1 TB (Optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45 — 10/100/1000 Mbps)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• WLAN / Bluetooth: Support (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Dimensions: 388 x 233 x 40 mm
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless Design
• USB Port: 2 x USB 3.2 Gen1x1 (Type-A)
• Serial Port: 1 x RS232 (Default) / RS422 / RS485
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker (Optional)
• Indicator: Power LED Indicator
• Power Rating: 12V DC (AC Adapter 12V/50W included)
• Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: Quick Start Guide (Hardcopy); AC Adapter 12V/50W; Power Cord
