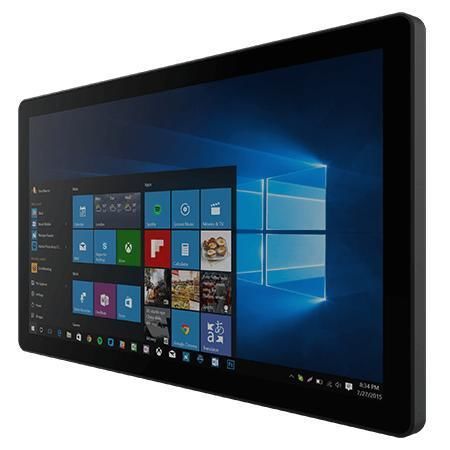

Multitouch screen panel PC W22IT3S-PTA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
Winmate W22IT3S-PTA3 is a 21.5-inch PT Series HMI Touch Panel PC powered by an Intel® Core™ i5-1135G7 processor. It is engineered for machine control, factory automation and operator HMI applications where fanless operation, stable field performance and long lifecycle availability are required. Key platform traits include fanless cooling, low power consumption, a true-flat easy-to-clean front surface and Front IP65 protection.

Key features

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection against water and dust
• True-flat, edge-to-edge easy-to-clean front surface

Product highlights

• Energy Efficient with Intel® Processor — Balanced computing performance with energy-efficient operation; supports Windows IoT and other OS options for easy software integration.
• True Flat (Easy-to-clean) — Edge-to-edge flat front reduces dust accumulation and simplifies maintenance.
• Easy Mounting — Supports universal mounting including VESA for wall, desk or in-vehicle installation.
• P-Cap Touch (Scratch resistant) — Projected capacitive multi-touch with glass cover for robust, multi-touch finger operation.
• Front IP65 Waterproof and Dustproof — Front side sealed to IP65 for protection against dust and water splash.

Certifications

• CE
• FCC

Technical specifications

• Model: W22IT3S-PTA3
• Brand: Winmate
• Display — Size: 21.5 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch (Default); Anti-glare Coating (Optional)
• Display — Resolution: 1920 x 1080
• Display — Panel Brightness: 250 nits
• Display — Contrast Ratio: 3000:1
• Display — View Angles: 89, 89, 89, 89
• Display — Active Area: 476.64 x 268.11 mm
• System — Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• System — Memory: 1 x SO-DIMM DDR4 3200 MHz; 4GB default; optional 8GB / 16GB / 32GB
• System — Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB (Default); options 256GB, 512GB, 1TB, 2TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2TB
• System — Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• System — Security: TPM 2.0
• System — Operating System: Windows 11 IoT Enterprise (64-bit) optional; Windows 11 Pro 64-bit optional; Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 22.04 optional. Note: Wake on touch supported only on Windows 11 by default.
• System — WLAN / BT: optional
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — IP rating: Front IP65
• Mechanical — Dimension: 530 x 322 x 56 mm
• Mechanical — Mounting: VESA mount
• Mechanical — Enclosure: Plastic
• Mechanical — Cooling System: Fanless design
• IO Ports — USB Port: 2 x USB 3.2
• IO Ports — Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports — LAN: 2 x RJ45
• IO Ports — Video: 1 x HDMI (Optional)
• IO Ports — Audio: 2 x Speaker
• Power — Power Rating: 12V DC
• Control — Buttons: 1 x Power Button; 1 x Reset Button
