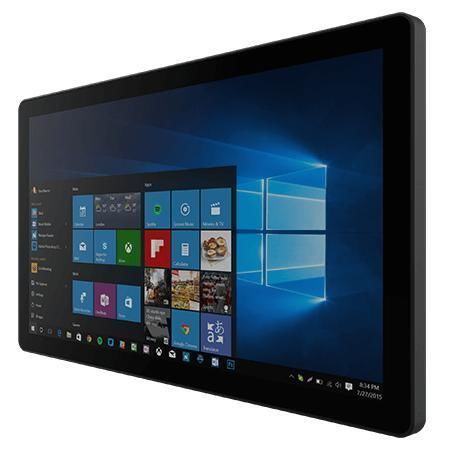

Multitouch screen panel PC W22IE3S-PTA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
Winmate W22IE3S-PTA3 is a 21.5-inch PT Series HMI Touch Panel PC powered by Intel® Celeron® Elkhart Lake processors. It is engineered for machine control, factory automation and operator HMI applications, offering a fanless design, front IP65 protection and a true-flat front for easy cleaning and integration in industrial environments.

Key Features

• Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
• Fanless cooling for reduced maintenance and no dust intake
• Front IP65 protection against water and dust
• True flat, edge-to-edge glass with P‑Cap multi-touch

Highlights & Product Design

• Energy-efficient Intel® processor options for reliable industrial performance
• True flat glass front: easy to clean and scratch-resistant P‑Cap touch
• Multiple mounting options including VESA for wall, desk and in-vehicle installation
• Sealed front panel (IP65) to protect electronics from dust and splashes
• Fanless architecture to minimize maintenance and increase service life

Certifications

• CE
• FCC

Accessories (standard / included)

• Quick Start Guide (Hardcopy)
• AC Adapter 12V/50W
• Power Cord

Technical specifications

• Model: W22IE3S-PTA3
• Display Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P‑Cap)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 476.64 x 268.11 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz) default; Intel® Celeron® N6210 (up to 2.6 GHz) optional
• Memory: 1 x SO‑DIMM, DDR4 3200 MHz, 4GB (Default); optional 8GB / 16GB
• Storage: 1 x M.2 2242 B‑key SSD 128GB (Default); optional M.2 up to 512GB; optional 1 x SATA III for 2.5" SSD/HDD up to 1TB
• Ethernet Controller: 2 x Intel® Ethernet Controller (2 x RJ45 10/100/1000 Mbps)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN / Bluetooth: optional support
• Operating Humidity: 10% to 90% RH, non‑condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Dimension: 530 x 322 x 56 mm
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless Design
• USB Ports: 2 x USB3.2 Gen1x1 (Type‑A)
• Serial Port: 1 x RS232 (Default) / 422 / 485
• LAN: 2 x RJ45 - 10/100/1000 Mbps
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker (Optional)
• Indicator: Power LED Indicator
• Power Rating: 12V DC (AC Adapter 12V/50W included)
• Buttons / Control: 1 x Power Button; 1 x Reset Button
