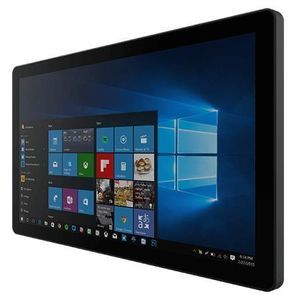

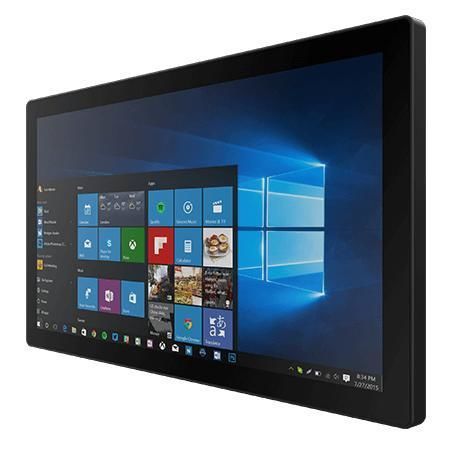

Multitouch screen panel PC W24IE3S-PTA2

touch screenPCAP capacitive touch screen24"

Overview
Winmate W24IE3S-PTA2 is a 24-inch PT Series HMI touch panel PC powered by the Intel® Celeron® N6211 processor. Designed for machine control, factory automation and operator HMI, it offers a fanless design, low power consumption and front IP65 protection for industrial environments requiring reliable long-term availability.

Key Features

• Intel® Celeron® Elkhart Lake N6211 low‑power processor
• Fanless cooling for silent, maintenance‑free operation
• Front IP65 sealing against water and dust
• True flat, edge‑to‑edge front glass for easy cleaning
• Projected capacitive multi‑touch (P‑Cap) glass, scratch resistant

Product Highlights
The unit provides energy‑efficient computing suitable for embedded and industrial software. Universal VESA mounting supports wall, panel or in‑vehicle installations. Optional Windows IoT/Windows Pro or Linux configurations enable flexible software integration. Dual Intel® Gigabit Ethernet and TPM 2.0 enhance connectivity and security.

Specifications
Display

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P‑Cap)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x SO‑DIMM DDR4 3200 MHz — 4GB (default); 8GB / 16GB optional
• Storage: 1 x M.2 2242 B‑key SSD 128GB (default); 256GB/512GB optional; 1 x SATA III for 2.5" SSD/HDD up to 1TB (optional)
• Ethernet controller: 2 x Intel® Gigabit Ethernet (2 x RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04 (options)
• WLAN / Bluetooth: optional

Environment

• Operating Humidity: 10% to 90% RH, non‑condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

Certification

• CE
• FCC

Mechanical

• Dimensions: 588 x 358 x 60 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling System: Fanless design

IO Ports

• USB: 2 x USB 3.2 Gen1 (Type‑A)
• Serial: 1 x RS232 (default) / optional RS422 / RS485
• LAN: 2 x RJ45 — 10/100/1000 Mbps
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker (optional)
• Indicator: Power LED

Power

• Power Rating: 12V DC

Control

• Buttons: 1 x Power, 1 x Reset

Accessory

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W
• Power cord
