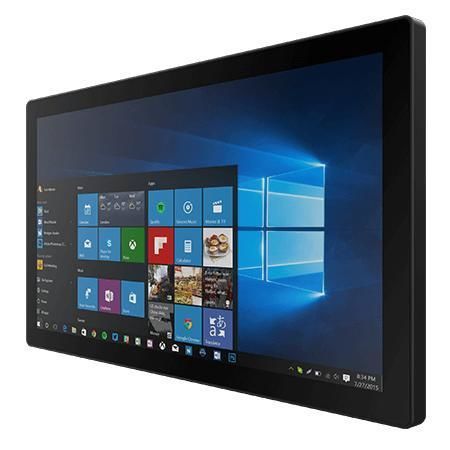

Multitouch screen panel PC W24IT3S-PTA2

PCAP capacitive touch screen24"1920 x 1080

Overview
Winmate W24IT3S-PTA2 is a 24-inch PT Series HMI Touch Panel PC powered by an Intel® Core™ i5-1135G7 processor. It is designed for machine control, factory automation and operator HMI applications where stable hardware integration, dependable field operation and long lifecycle availability are required.

Highlights

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection for water and dust resistance
• Projected capacitive (P-Cap) multi-touch with true-flat glass, scratch resistant
• Universal mounting options including VESA for wall, desk or vehicle installation

Design & usability
The true-flat glass front reduces ingress points for dust and is easy to clean. The projected capacitive multi-touch supports multi-finger gestures for intuitive operator interaction. Compact mechanical design and VESA compatibility simplify integration into control panels, operator consoles and vehicle cabins.

Certifications

• CE
• FCC

Additional product information
Front IP65 sealing and a fanless thermal design ensure reliable operation in industrial environments. The system includes TPM 2.0 security and supports multiple OS options (Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04). Memory and storage are configurable via SO-DIMM and M.2 NVMe / SATA options to match application requirements.

Specifications

• Display - Size: 24.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - Active Area: 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB (Default); optional 8GB / 16GB / 32GB
• Storage: 1 x M.2 2280 NVMe 128GB (Default); optional 256GB / 512GB / 1TB / 2TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ45)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro (64-bit) / Linux Ubuntu 22.04 (optional)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Front IP rating: IP65
• Dimensions: 588 x 358 x 60 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling: Fanless
• IO: 2 x USB 3.2; 1 x RS232/422/485 (default RS232); 2 x RJ45; 1 x HDMI (optional); Audio: 2 x Speaker
• Power: 12V DC
