Multitouch screen panel PC W15IM3S-PTA3

PCAP capacitive touch screen15.6"1920 x 1080

Overview

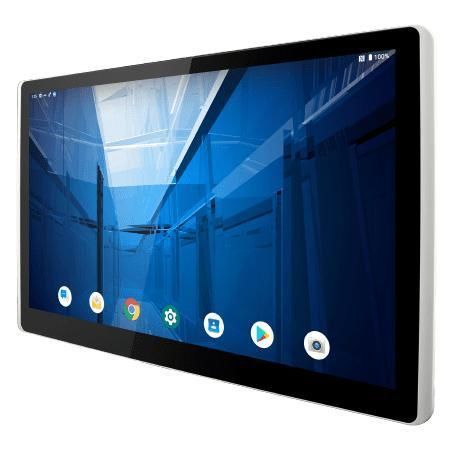

Winmate W15IM3S-PTA3 is a 15.6-inch ARM A53 Quad Core 2.0 GHz HMI Panel PC running Android 11 (upgradeable to Android 13). Designed for machine control, factory automation and operator HMI, it provides fanless ultra-low power operation, onboard 32 GB eMMC storage, 4 GB LPDDR4 memory, a projected capacitive multi-touch (P-CAP) display and a front IP65 rating for water and dust protection.

Key features

• 15.6-inch 1920 x 1080 resolution with projected capacitive multi-touch (P-CAP) touchscreen
• ARM A53 Quad Core 2.0 GHz processor
• Fanless cooling system and ultra-low power consumption
• Onboard 32 GB eMMC storage
• Onboard 4 GB LPDDR4 memory
• Android 11 HMI Panel PC (upgradeable to Android 13); optional Linux Yocto and Ubuntu Server
• Front IP65 for dust and splash protection
• Supports Android or Linux operating systems

Product highlights

• Energy-efficient ARM processor platform delivering adequate compute with low power draw
• True-flat front for easy cleaning and reduced ingress points
• Comprehensive mounting options including VESA (wall, desk or in-vehicle installations)
• P-Cap glass cover resistant to scratches and supporting multi-touch finger operation
• Front-side IP65 sealing for waterproof and dustproof protection in industrial environments

Certifications

• Front IP65
• FCC
• CE

Specifications

• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Size: 15.6 inches
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 400 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85/85/85/85
• Display - Active Area: 344.16 x 193.59 mm
• System - Processor: ARM A53 (Quad Core 2.0 GHz)
• System - Memory: 4 GB LPDDR4 (onboard)
• System - Storage: Onboard eMMC 32 GB
• System - Operating System: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu Server 22.04
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• Mechanical - Dimension: 387.8 x 232.9 x 40 mm
• Mechanical - Mounting: VESA mount (100 x 200, 100 x 100, 75 x 75 mm)
• Mechanical - Enclosure: Plastic
• Mechanical - Cooling System: Fanless design
• IO Ports - USB: 2 x USB 2.0, 1 x USB OTG
• IO Ports - Serial: 1 x RS232 (default) / 422 / 485
• IO Ports - LAN: 1 x RJ45, optional PoE (PD, IEEE 802.3at)
• IO Ports - Audio: 2 x Speaker
• IO Ports - SD Card Slot: 1 x Micro SD (max 32 GB)
• Accessory - Included: Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3-pin terminal block to DC jack
• Power - Power Rating: 12 V DC via terminal block
• Power - PoE: Power Device (PD) follows IEEE 802.3at (25 W)
• Control - Buttons: 1 x Power Button, 1 x Reset Button
