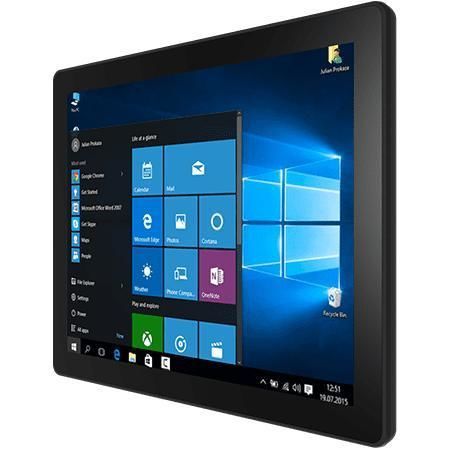

Multitouch screen panel PC R15IE3S-PTC3

PCAP capacitive touch screen15"1024 x 768

Product overview
Winmate R15IE3S-PTC3 is a 15-inch PT Series HMI touch panel PC powered by Intel® Celeron® N6211 (optional N6210). Designed for machine control, factory automation and operator HMI, it delivers fanless operation, low power consumption, Front IP65 protection and a true-flat, easy-to-clean front surface for industrial environments.

Key features

• Low power Intel® Celeron® Elkhart Lake N6211 processor (optional N6210)
• Fanless cooling for silent, low-maintenance operation
• Front IP65 protection against dust and water splashes
• True-flat, edge-to-edge front glass for easy cleaning

Energy efficient with Intel® processor
Designed for industrial integration, the panel PC supports Windows IoT and optional Linux OS, enabling straightforward software integration and customization for OEMs and system integrators.

True Flat (easy to clean)
Edge-to-edge glass front reduces dust accumulation and simplifies maintenance in production and field environments.

Easy mounting
PT-Series supports universal mounting options including VESA for wall, desk and in-vehicle installations, adaptable to varied industrial scenarios.

P-Cap touch (scratch resistant)
Projected-capacitive multi-touch with a protective glass cover supports multi-touch finger operation and improves usability while resisting scratches.

Front IP65 waterproof and dustproof
Front-side sealing to IP65 protects the display from dust ingress and water splashes in industrial settings.

Certifications
CE, FCC

Technical specifications

• Brand: Winmate
• Model: R15IE3S-PTC3
• Series: PT Series HMI
• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch (Default); Anti-glare Coating (Optional)
• Display - Resolution: 1024 x 768
• Display - Brightness: 300 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88,88,88,88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: Intel® Celeron® N6211 (up to 3.0 GHz) (Default); Intel® Celeron® N6210 (up to 2.6 GHz) (Optional)
• System - Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB (Default); 8GB / 16GB (Optional)
• System - Storage: 1 x M.2 2242 B-key SSD 128GB (Default); up to 512GB optional; 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45 10/100/1000 Mbps)
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise (Optional); Windows 11 Pro; Windows 10 IoT Enterprise; Linux Ubuntu 22.04 (Optional)
• System - WLAN / BT: Support (Optional)
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• Mechanical - Dimension: 352.5 x 276.7 x 45 mm
• Mechanical - Weight: 2.41 kg
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Plastic
• Mechanical - Cooling System: Fanless design
• IO Ports - USB Port: 2 x USB 3.2 Gen1x1 (Type-A)
• IO Ports - Serial Port: 1 x RS232 (Default) / 422 / 485
• IO Ports - LAN: 2 x RJ45 - 10/100/1000 Mbps
• IO Ports - Video: 1 x HDMI 2.0 (Optional)
• IO Ports - Audio: 2 x Speaker (Optional)
• IO Ports - Indicator: Power LED
• Power - Power Rating: 12V DC
• Control - Button: 1 x Power Button; 1 x Reset Button
• Accessory - Quick Start Guide (Hardcopy); AC Adapter 12V/50W; Power Cord
• Certification: CE, FCC
