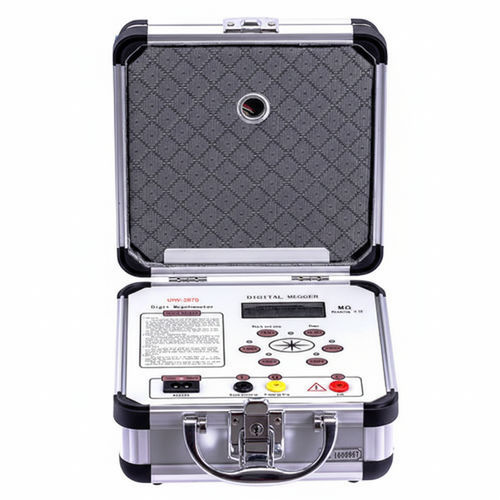

Portable insulation resistance meter UHV-2670
Add to favorites
Compare this product
Characteristics
- Type
- portable
Description
Overview / Main use
Key features
Associated documents
Technical specifications

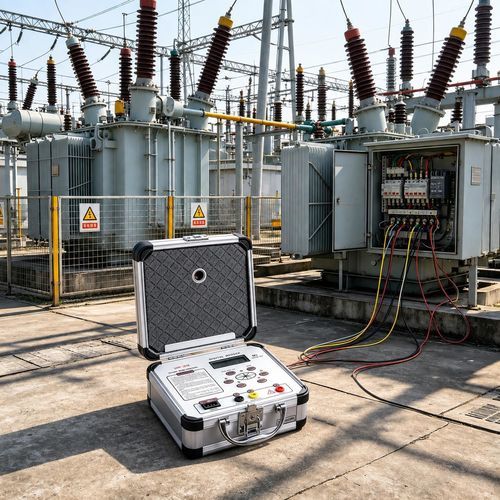

- The UHV-2670 Digital Insulation Resistance Meter checks insulation resistance of electrical equipment and lines (phase to ground and phase-to-phase) to verify normal operation and safety before commissioning or maintenance.
Key features
- High output power and strong load capability suitable for capacitive specimens; short-circuit current > 1.6 mA enables rapid rise of test voltage to rated output.
- Housing in aldural/high-strength aluminum alloy with potential protection ring and a 4th-order active low-pass filter for shielding against mains-frequency interference and strong electromagnetic fields.
- Battery-powered portable design with automatic measurement-range switching; clear LCD for fast readings.
- Output short-circuit current can be measured directly without estimation; scaling method reduces impact when measuring low resistance.
Associated documents
- User manual (PDF) and technical datasheet available on the product page.
Technical specifications
- Operating conditions: ambient temperature 0℃ ～ +45℃; relative humidity ≤85%.
- Output voltage levels: 100 V, 250 V, 500 V, 1000 V.
- Measurement range: 0 ～ 19990 MΩ.
- Resolution: 0.01 MΩ, 0.1 MΩ, 1.0 MΩ, 10.0 MΩ (range-dependent).
- Accuracy (relative error): 0 ～ 2000 MΩ ≤ ±5% ±2 digits; 2000 MΩ ～ 19990 MΩ ≤ ±10% ±2 digits.
- Voltage / load (typical): 1000 V / 20 MΩ.
- Voltage drop under load: approx. 10%.
- Short-circuit current: > 1.6 mA.
- DC power: 8 × 1.5 V (AA, R6) batteries.
- AC supply (for charger/external): 220 V / 50 Hz.
- Power consumption: quiescent dissipation ≤ 160 mW; maximum power ≤ 2.5 W.
- Dimensions (L × W × H): 235 × 200 × 135 mm.
- Weight: < 1.4 kg.
- Also referenced as: Insulation Resistance Meter; Digital Insulation Resistance Meter.
