Portable insulation resistance meter GM-5kV
Add to favorites
Compare this product
Characteristics
- Type
- portable
Description
Overview
Key features
Resistance measurement ranges and accuracy
Technical specifications
Timing and alarm functions
Included documents & names

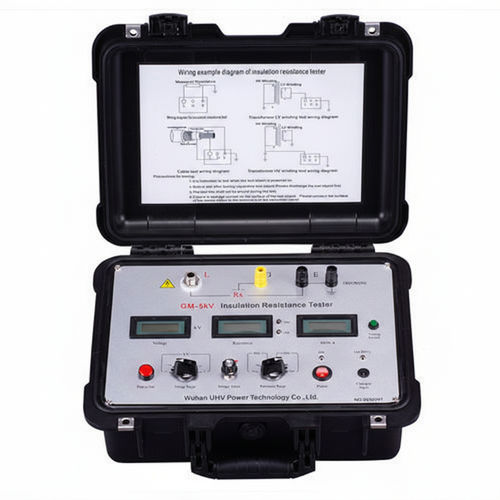

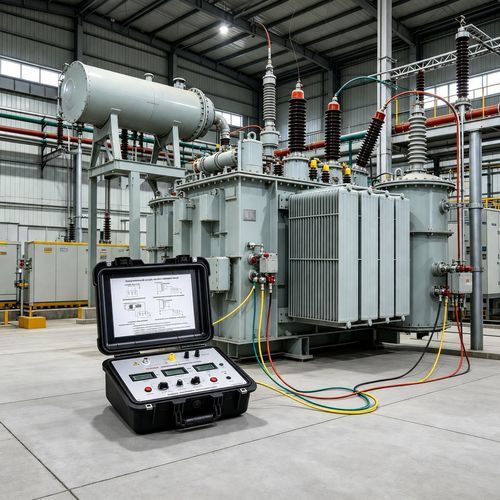

- The GM-5kV Insulation Resistance Tester is a portable high-voltage megohmmeter designed for HV substations and power plants to measure insulation resistance of large HV transformers, electrical machines and power cables even in high-interference environments.
- Provides adjustable high-voltage output, wide resistance measurement range, timing and alarm functions to support absorption ratio and polarization index analysis.
Key features
- Strong anti-interference capability: electric-field induction anti-interference up to 2 mA (50/60 Hz).
- Large short-circuit current (typical value 10 mA), suitable for testing large capacitance and high-inductance equipment.
- Wide resistance measurement range with high resolution and accurate readings.
- Adjustable high-voltage output levels: selectable 0.1 kV, 0.25 kV, 0.5 kV, 1 kV, 2.5 kV and 5 kV; smooth adjustment from 0 V to required voltage.
- Acousto-optic reminders and timing functions to assist recording and analysis (absorption ratio, polarization index).
- Imported key components to ensure measurement stability and accuracy.
- Portable integrated case: compact, lightweight and easy to carry; robust materials for field use.
Resistance measurement ranges and accuracy
- 20 MΩ range: 0.01 – 19.99 MΩ — accuracy ±(5% + 3 digits).
- 200 MΩ range: 5.0 – 199.9 MΩ — accuracy ±(5% + 3 digits).
- 2000 MΩ range: 50 – 1999 MΩ — accuracy ±(5% + 3 digits).
- 20 GΩ range: 0.5 – 19.99 GΩ — accuracy ±(5% + 3 digits).
- 200 GΩ range: 5.0 – 199.9 GΩ — accuracy ±(10% + 3 digits).
- 2000 GΩ range: 50 – 1999 GΩ — accuracy ±(20% + 10 digits).
Technical specifications
- Model: GM-5kV
- Brand: UHV Power (Wuhan UHV Power Technology Co., Ltd.)
- Output voltage levels: 0.1 kV, 0.25 kV, 0.5 kV, 1 kV, 2.5 kV, 5 kV (adjustable smoothly from 0 V to required voltage).
- Test voltage accuracy: ±(5% + 10 V).
- Short-circuit current: Typical value 10 mA.
- Display: Three 3½-digit LCD digital meter heads showing test voltage, resistance and time respectively.
- Power supply: Built-in rechargeable lithium battery, DC 15 V; AC (50/60 Hz) adapter port for charging.
- Operating environment: Temperature -20 °C to +40 °C; relative humidity 20% – 90%.
- Dimensions (L × W × H): 315 × 240 × 180 mm.
- Weight: 5.5 kg.
Timing and alarm functions
- Stopwatch displays up to 19 minutes 59 seconds (cycles every 20 minutes).
- Audible prompts at 15 s, 60 s and every minute; short beep at these points with resistance reading held for 3 seconds.
- Continuous audible alarm if reading is invalid or below the lower limit of the selected range.
Included documents & names
- Nicknames: Insulation Resistance Tester; Insulation Meter.
- Documentation available on product page: User Manual (PDF) and Calibration Certification (PDF).
