Grounding resistor tester ETCR2000

leakage currentfor electrical equipmentindustrial

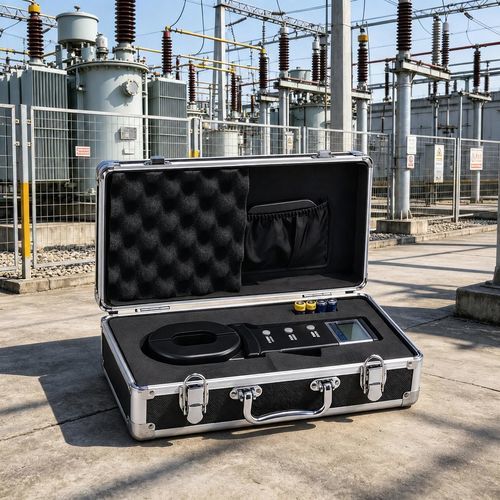

ETCR2000 Clamp Earth Resistance Tester is a clamp-style instrument for non-contact measurement of grounding/earth resistance, designed for use across power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment. It provides safe, fast measurements without the need for auxiliary ground rods and offers strong anti-interference capability and high accuracy.

Applications

• Measurement of grounding resistance for power distribution networks, telecom sites, meteorological towers, oilfield installations, construction sites and industrial electrical equipment.

Key features

• Applies to all kinds of ground conductors: round bar, flat bar, angle iron.
• Non-contact resistance measurement for safe and rapid testing (no auxiliary ground rod required).
• Double protective insulation for enhanced operator safety.
• Strong anti-interference capability and high measurement accuracy.
• Battery-powered (4 × 5# alkaline) for field convenience.
• Jaw span (maximum opening): 32 mm; available long and round jaw variants.

Multimedia & Documentation

• Embedded product video demonstrations available for visual guidance.
• User manual and calibration certificate (PDF) available for download.

Technical specifications

• Power source: 6 VDC (4 × 5# alkaline battery).
• Operating temperature: -10℃ ～ 55℃.
• Relative humidity: 10% ～ 90%.
• LCD display: 4-digit LCD, display area 47 × 28.5 mm².
• Span of jaw (maximum opening): 32 mm.
• Weight (battery included): Long jaw 1160 g; Round jaw 1120 g.
• Jaw size: Long jaw 285 mm × 85 mm × 56 mm; Round jaw 260 mm × 90 mm × 66 mm.
• Explosion-proof mark: Exia Ⅱ BT3 (Explosion-proof Certificate number: CE0802010).
• Protection level: Double insulation.
• Structural feature: In-the-jaw measurement method.
• Shift: Automatic.
• External magnetic field immunity: < 40 A/m.
• External electric field immunity: < 1 V/m.
• Each measuring time: 1 second.
• Resistance measurement frequency: > 1 kHz.
• Maximum resistance measurement resolution: 0.001 Ω.
• Resistance measurement range: 0.01 ～ 1000 Ω.
• Current measurement range*: 0 ～ 20 A.
• Measured current frequency*: 50/60 Hz.
• Storable measurement data*: 99 sets.
• Setting range of resistance alarm critical value*: 1 ～ 199 Ω.
• Setting range of current alarm critical value*: 1 ～ 499 mA.
• Dimension: 350 × 200 × 100 mm³.
• Overall weight: 2 kg.
• Nicknames: Clamp Earth Resistance Tester; Grounding Resistance Tester.
