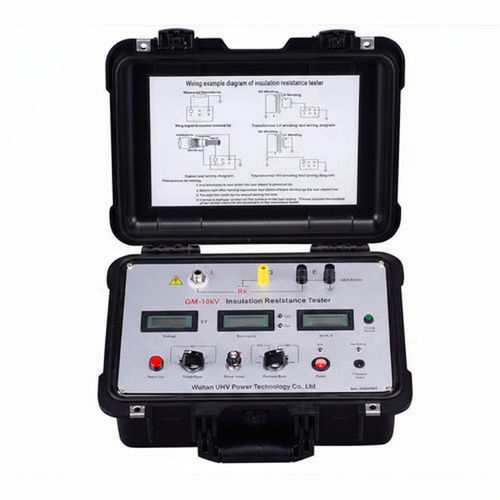

Insulation resistance meter GM-10kV

The GM-10kV Adjustable High-Voltage Digital Tester is an industrial insulation resistance tester that generates selectable DC high-voltage levels and measures leakage current to compute insulation resistance. It is intended for verification of insulation performance on substations, power plants, transmission lines, underground and overhead cables, large transformers and motors.

Range and accuracy

• 20 MΩ — Effective measurement: 0.01–19.99 MΩ — Accuracy: ±(5%+3d)
• 200 MΩ — Effective measurement: 5.0–199.9 MΩ — Accuracy: ±(5%+3d)
• 2 GΩ — Effective measurement: 0.05–1.999 GΩ — Accuracy: ±(5%+3d)
• 20 GΩ — Effective measurement: 0.5–19.99 GΩ — Accuracy: ±(5%+3d)
• 200 GΩ — Effective measurement: 5.0–199.9 GΩ — Accuracy: ±(10%+3d)
• 2000 GΩ — Effective measurement: 50–1999 GΩ — Accuracy: ±(20%+10d)

Important notes / cautions

• MΩ-range calibration voltage: 0.5 kV; GΩ-range calibration voltage: 2.5 kV.
• For accurate resistance readings, test voltage should be above 20% of the nominal test voltage used.
• When test voltage exceeds 8 kV and measuring resistances above 20 GΩ, exposed high-voltage electrodes in air should be shielded to prevent air ionization effects.
• The 2000 GΩ range is intended as a reference range for dry environments (relative humidity < 70%).

Features

• Adjustable DC high-voltage output: multiple selectable levels (examples: 0, 0.25 kV, 0.5 kV, 2.5 kV, 5 kV — exact levels depend on model).
• Digital LCD display for clear, direct reading of insulation resistance values and test status.
• High anti-interference capability: equipotential protection ring and fourth-order active low-pass filter to reduce power-frequency and strong electromagnetic interference.
• Automation: some models provide automatic range switching and automatic calculation of absorption ratio and polarization index.
• Safety functions: instrument provides automatic discharge after test; avoid manual discharge until voltmeter indicates zero.

Application area

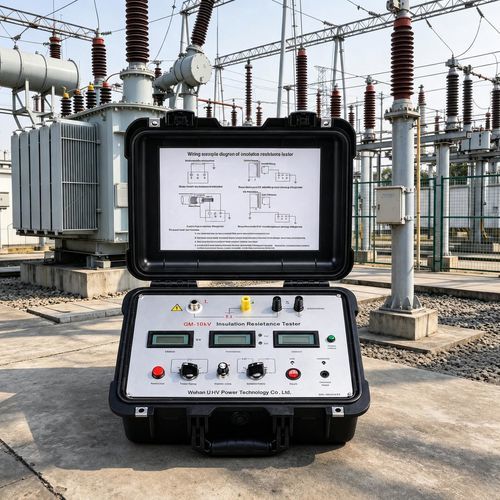

• Insulation testing in high-voltage substations, power plants, long-distance transmission lines, buried and overhead cables, large transformers and motors.
• Applicable for telecom equipment checks, electromechanical installation and maintenance, and other industrial high-voltage inspection tasks.

Technical specifications

• Product name: GM-10kV Adjustable High-Voltage Digital Tester
• Model/series: GM series
• Alternate names: Insulation Resistance Tester; Insulation Meter
• Typical selectable test voltages: 0, 0.25 kV, 0.5 kV, 2.5 kV, 5 kV (model-dependent)
• Display: LCD digital display
• Anti-interference measures: equipotential protection ring; 4th-order active low-pass filter
• Automatic functions: automatic absorption ratio and polarization index calculation (on some models); automatic range switching
• Measurement ranges and accuracies: see Range and accuracy section above
• Operating environment note: use highest ranges (e.g., 2000 GΩ) in dry environments (RH < 70%)
• Documentation included: User Manual, Calibration Certificate (PDF)
• Manufacturer: Wuhan UHV Power Technology Co., Ltd.
