Continuity tester UHV-810

ground

Overview

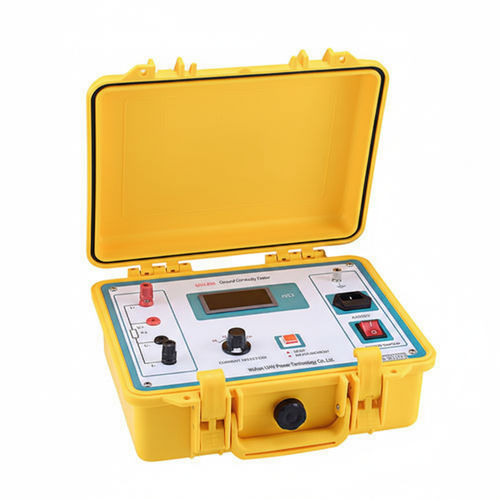

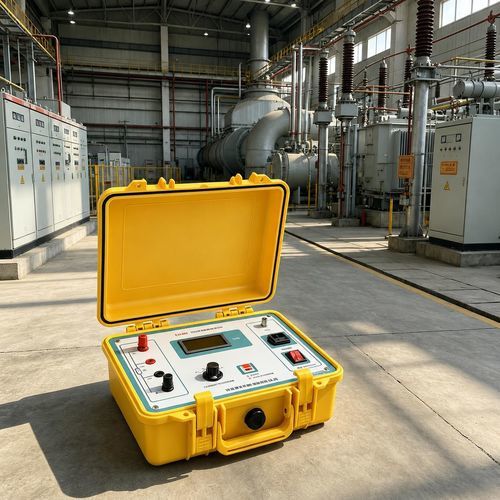

The UHV-810 Ground Continuity Tester is a portable, highly automated instrument for verifying connectivity and electrical integrity of power equipment and grounding networks in field and workshop tests.

Key features

• Continuous DC output up to 10 A to break contact oxidation films and obtain reliable measurements.
• High anti‑interference performance: last LCD digit stable within ±1 count under severe interference for repeatable readings.
• Long service life: high‑precision resistors reduce temperature influence; military‑grade connectors improve vibration resistance.
• Simple operation: single measurement key; results displayed on a 3 1/2‑digit LCD for intuitive readings.
• Portable design: compact, lightweight panel-and-case integrated structure with seismic resistance for easy transport.

Media and documentation on the page

• Embedded demonstration video showing operation and test procedures.
• Product images and accessory illustrations.
• User Manual and Calibration Certificate available as PDF.

Specifications

• Measurement range: 1 ～ 1999 mΩ
• Resolution: 1 mΩ
• Test current: DC 1 A, 2 A, 5 A, 10 A (four fixed current settings)
• Measurement accuracy: ±(0.5% + 2 digits)
• Measurement radius: 50 m
• Display: 3 1/2‑digit LCD
• Operating mode: continuous
• Power supply: AC 220 V ±10%, 50 Hz
• Operating temperature: -10 °C ～ 40 °C
• Relative humidity: ≤ 80% RH
• Dimensions: 300 × 270 × 200 mm
• Weight: 5 kg (excluding accessories)
