Insulation resistance tester BC2010

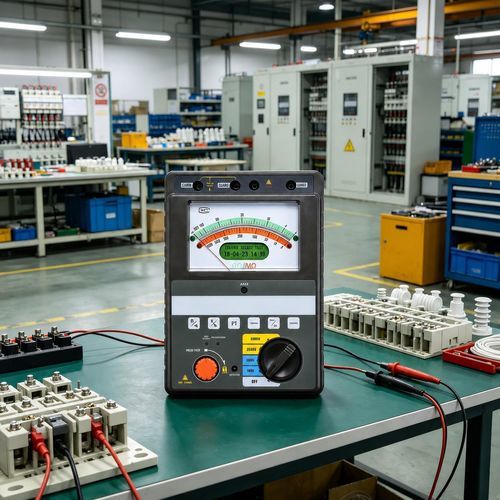

BC2010 insulation resistance tester is a portable, dual-display pointer-type megohmmeter for on-site insulation testing of cables, motors, generators, transformers, high-voltage switches, arresters and similar electrical equipment. It provides synchronous mechanical-pointer and dot-matrix LCD readout, embedded industrial microcontroller control and a real-time OS for high automation and strong anti-interference performance.

Features

• Selectable DC output voltages: 500 V, 1000 V, 2500 V, 5000 V, with automatic resistance-range conversion (measurement range up to 0–1 TΩ).
• Dual synchronous display: mechanical pointer (ultra-thin tension-wire structure for high vibration resistance) plus dot-matrix LCD for clear observation and operation.
• Integrated mechanical meter head and LCD: dual-scale display, automatic range conversion and color/LED indicators for easy reading.
• Embedded industrial microcontroller and real-time software enabling automated operation and strong anti-interference; automatic calculation of absorption ratio and polarization index.
• User-oriented interface with anti power-off data retention; continuous storage of up to 20 measurement results.
• Audible warning when the instrument generates high voltage and built-in residual HV discharge circuit to automatically discharge tested equipment after measurement.
• AC/DC operation with built-in rechargeable lithium battery and AC adapter for portable field use.
• High-voltage short-circuit current ≥ 3 mA, suitable for testing large transformers, generators, high-voltage motors, power capacitors, power cables, lightning arresters, etc.
• Portable ergonomic design for field deployment.

Product details (key parameters and operational conditions)

• Output voltage: DC −500 V, −1000 V, −2500 V, −5000 V; typical output error: ±5% FS.
• Testing accuracy ranges and errors:
  • 1 MΩ–20 MΩ: ±10% FS
  • 20 MΩ–1000 MΩ: ±5% FS
  • 1 GΩ–20 GΩ: ±5% FS
  • 20 GΩ–200 GΩ: ±10% FS
  • ≥200 GΩ (to 1 TΩ): ±20% FS
• Measuring ranges by test voltage:
  • 500 V → 0–10 GΩ
  • 1000 V → 0–20 GΩ
  • 2500 V → 0–200 GΩ
  • 5000 V → 0–1 TΩ
• Digital testing and display range: 0–1 TΩ.
• Operating ambient temperature: 0 °C – 40 °C.
• Relative humidity: ≤ 70% RH.
• Power supply: AC 220 V ±10% (with built-in lithium battery for portable use).
• Net dimensions (L × W × H): 230 mm × 190 mm × 90 mm.
• Net weight: < 3 kg.

Specifications

• Model: BC2010
• Product type: Intelligent dual-display pointer-type insulation resistance tester (megohmmeter)
• Output voltages: 500 V, 1000 V, 2500 V, 5000 V DC
• Resistance measurement range: up to 0–1 TΩ (automatic range conversion)
• Display: Mechanical pointer + dot-matrix LCD (synchronous)
• Accuracy/errors: see testing accuracy ranges above
• Automatic calculations: absorption ratio, polarization index
• Data storage: stores up to 20 measurement results (anti power-off retention)
• Safety/discharge: built-in residual high-voltage discharge circuit
• Power: AC mains or built-in rechargeable lithium battery
• Short-circuit current (HV): ≥ 3 mA
• Dimensions: 230 × 190 × 90 mm; Weight: < 3 kg
