Portable insulation resistance meter GM-15kV
Add to favorites
Compare this product
Characteristics
- Type
- portable
Description
Overview
Key features
Applications
Safety precautions
Technical specifications

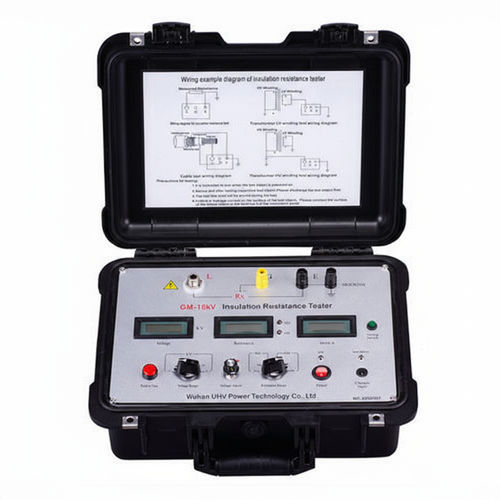

- The GM-15kV digital high-voltage insulation resistance tester is designed to measure insulation resistance of high-voltage substations, power plants, long-distance and underground power cables, transformers, motors and other electrical equipment.
- Combines analog, digital and mechanical technologies to provide wide output voltage/current capability, broad measurement range, measurement accuracy and strong anti-interference performance.
Key features
- High anti-interference capability: resists electric-field induction (capability up to 2 mA @ 50 Hz), enabling many on-site measurements without disconnecting conductors.
- High short-circuit current capability (typical 10 mA) suitable for testing large-capacity or high-inductance equipment.
- Wide resistance measurement range and high resolution, covering from low MΩ to multi-GΩ values.
- Adjustable high-voltage output with selectable levels and smooth adjustment from 0 V to target voltage.
- Audible and visual alarms plus timer functions to record and analyse absorption ratio and polarization index (PI).
- Use of high-quality imported components to ensure measurement precision and reliability.
- Compact, lightweight integrated chassis for portability and field operation.
- Robust construction for long service life and stable appearance.
Applications

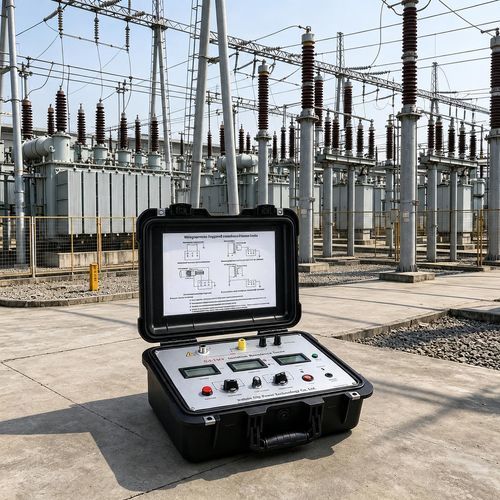

- Intended for power systems, telecommunications, electromechanical installation and maintenance, and industrial electrical applications to test insulation resistance of transformers, motors, cables and other electrical equipment.
Safety precautions
- Always connect the safety grounding lead before testing; the instrument generates high voltage and the tested object may contain power-frequency leakage or induced high-voltage energy.
- Do not perform manual discharge while the instrument is operating at high voltage. After testing, wait for automatic discharge and for the voltmeter to return to zero before any manual discharge; avoid strong pulse short-circuit discharges that could damage the tested object's insulation or the instrument's internal circuits.
Technical specifications
- Model: GM-15kV.
- Output voltage levels: 0.5 kV, 1 kV, 2.5 kV, 5 kV, 10 kV, 20 kV.
- Test voltage accuracy: ±(5% + 10 V).
- Typical short-circuit current: 10 mA.
- Resistance measurement ranges and accuracies:
- 20 MΩ range: 0.01 – 19.99 MΩ, accuracy ±(5% + 3 digits).
- 200 MΩ range: 5.0 – 199.9 MΩ, accuracy ±(5% + 3 digits).
- 2 GΩ range: 0.05 – 1.999 GΩ, accuracy ±(5% + 3 digits).
- 20 GΩ range: 0.5 – 19.99 GΩ, accuracy ±(5% + 3 digits).
- 200 GΩ range: 5.0 – 199.9 GΩ, accuracy ±(10% + 3 digits).
- 2000 GΩ range: 50 – 1999 GΩ, accuracy ±(20% + 10 digits).
- Functions: adjustable high-voltage output, timer, audible/visual alarms, portable integrated chassis.
