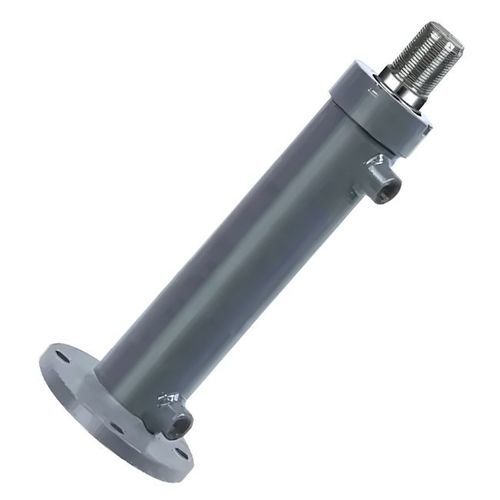

Hydraulic cylinder

with piston roddouble-actingsingle-acting

Product OverviewRear Flange Mounted Cylinder provides a rigid, repeatable mounting solution for heavy-duty hydraulic actuators. Available in single-acting or double-acting configurations, the fixed rear flange is bolted to a flat surface to ensure precise axial alignment, accurate linear motion and robust power transmission under compressive and tensile loads. Designed for stationary and semi-mobile industrial equipment where alignment and structural support are critical.

Model and Brand

• Model: Flange Type
• Brand: EAST AI

Key Technical Specifications (table)Specification — Details
Type — Rear flange mounted, double/single acting
Bore Size — 40 mm - 300 mm
Stroke Range — 50 mm - 2000 mm (customizable)
Pressure Rating — Up to 300 bar
Material — High-strength steel barrel; chrome-plated rod
Mounting Interface — ISO/DIN rear flange standard or custom flange
Application Scope — Industrial, construction, material handling

Key Benefits

• Stable and accurate mounting: fixed rear flange ensures consistent axial alignment for repeatable motion
• Compact installation: flange mount reduces the need for external brackets, ideal for confined housings
• High load capability: suitable for vertical presses and horizontally fixed actuators in construction and processing machinery
• Bidirectional power: double-acting versions deliver controlled force on both extension and retraction strokes
• Greater rigidity than clevis mounts under compressive loads

Common Applications

• Hydraulic presses and forming machines
• Road construction and tunnel boring equipment
• Material handling and conveyor systems
• Agricultural implements and attachments
• Stationary machines requiring accurate alignment

Technical Specifications

• Type: Rear flange mounted, double/single acting
• Bore Size: 40 mm - 300 mm
• Stroke Range: 50 mm - 2000 mm (customizable)
• Pressure Rating: Up to 300 bar
• Material: High-strength steel barrel; chrome-plated rod
• Mounting Interface: ISO/DIN rear flange standard or custom flange
• Application Scope: Industrial, construction, material handling
