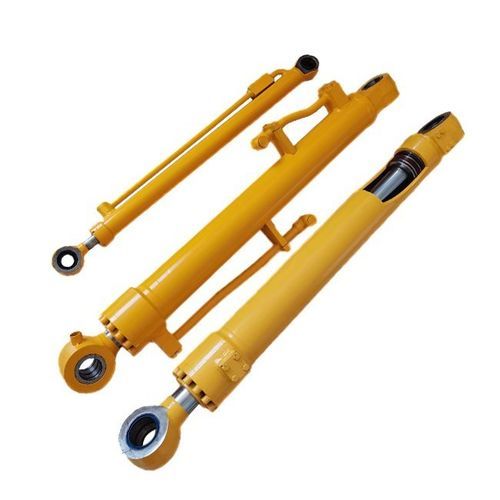

Hydraulic cylinder

pistondouble-actingsteel

Product Overview
The Cushioned Piston Cylinder is a specialized hydraulic actuator with integrated end-of-stroke cushioning. The built-in cushions decelerate the piston before it reaches the head or cap, preventing impact shock, reducing vibration and noise, and protecting connected equipment. Suitable for construction, agriculture, mining and general industrial machinery, this cylinder supports long service life and reduced maintenance downtime.

Model & Brand

• Model: Piston Type
• Brand: EAST AI

Advantages

• Shock Absorption: Built-in cushioning eliminates metal-to-metal impact at stroke ends.
• Extended Equipment Life: Protects hydraulic components from excessive stress and vibration.
• Noise Reduction: Smooth deceleration minimizes operational noise.
• Improved Productivity: Reduces downtime caused by maintenance and repairs.
• Energy Efficiency: Provides smoother operation, lowering system fatigue and energy loss.
• Versatility: Suitable for heavy machinery, precision equipment, and industrial automation.

Production Process

• Raw Material Selection: Premium alloy steel and seamless honed tubes are sourced to guarantee strength and purity.
• Machining of Cylinder Tube and Piston Rod: Precision CNC machining ensures tight tolerances and perfect fits.
• Heat Treatment: Critical parts undergo quenching, tempering, or induction hardening to achieve optimal hardness and wear resistance.
• Surface Treatment: Piston rods are hard chrome plated to resist corrosion and wear.
• Cushion Design Integration: Hydraulic cushions are built into both ends of the cylinder to absorb shock and ensure smooth deceleration.
• Assembly: High-quality seals, piston components, and cushion valves are assembled under cleanroom conditions.
• Testing: Each cylinder undergoes pressure, leakage, and functional tests to confirm compliance with international standards.

Product Parameters
Bore Size — 40 mm – 500 mm; Customization available
Rod Diameter — 20 mm – 200 mm; Chrome plated for corrosion resistance
Stroke Length — Up to 6000 mm; Tailored to customer requirements
Working Pressure — Up to 35 MPa; Heavy-duty hydraulic operation
Temperature Range — -20°C to +80°C; Optional seals for wider range
Surface Treatment — Hard chrome plating; Ensures wear & rust resistance
Sealing System — High-quality imported seals; Zero leakage performance
Mounting Type — Clevis, flange, trunnion, foot mounting; Multiple installation choices
Cushioning — Built-in adjustable cushions; Smooth end-stroke deceleration
Applications — Construction, agriculture, mining, automation; Widely adaptable

Factory Inventory
As a direct manufacturer, a large inventory of Cushioned Piston Cylinders and raw materials is maintained to enable quick delivery of standard sizes, customized production with short lead times, bulk order capacity, and support for long-term supply agreements. The warehouse uses environmental controls to protect finished products against rust, dust, and contamination prior to shipment.

Quality Inspection

• Dimensional Accuracy Check: Bore, rod, and stroke tolerances are verified with precision instruments.
• Hardness Testing: Ensures correct hardness levels for strength and wear resistance.
• Surface Roughness Test: Confirms proper chrome plating and smooth finish.
• Hydraulic Pressure Test: Cylinders are tested up to 1.5 times the rated pressure.
• Leakage Test: Guarantees sealing reliability under working conditions.
• Cushioning Performance Test: Ensures smooth deceleration at both stroke ends.

Certificates
Compliance with international quality standards including ISO 9001, CE for European markets, and material traceability to EN / DIN / ASTM standards. Third-party inspection reports (examples: SGS, BV, TUV) are referenced.

Technical Specifications

• Bore Size: 40 mm – 500 mm
• Rod Diameter: 20 mm – 200 mm (hard chrome plated)
• Stroke Length: Up to 6000 mm
• Working Pressure: Up to 35 MPa
• Temperature Range: -20°C to +80°C (optional seals for wider ranges)
• Surface Treatment: Hard chrome plating for wear and rust resistance
• Sealing System: High-quality imported seals with zero leakage performance
• Mounting Options: Clevis, flange, trunnion, foot mounting
• Cushioning: Built-in adjustable cushions for smooth end-stroke deceleration
• Typical Applications: Construction, agriculture, mining, industrial automation
