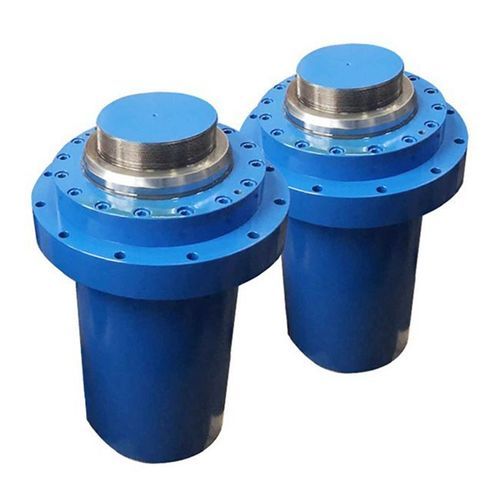

Hydraulic cylinder

steelalloyISO

Product overview
Front-flange hydraulic cylinder designed for fixed, face-mounted installations where the cylinder's front face is bolted directly to the machine frame. Provides high alignment precision and reduced deflection for heavy or unidirectional loads. Suitable for horizontal and vertical use in industrial presses, construction equipment and automated systems. Customizable in stroke, bore, rod, mounting and pressure to meet OEM and system integrator requirements.

Model and Brand

• Model: Front Flange
• Brand: EAST AI

Technical specifications

• Mounting: Front flange (ISO, SAE or custom dimensions)
• Bore size: 32 mm – 400 mm
• Stroke length: 50 mm – 3000 mm (customizable)
• Working pressure: up to 300 bar (4350 PSI)
• Rod material: chrome-plated carbon steel or alloy steel
• Tube material: honed steel / seamless precision tubing
• Seal options: Parker, Hallite, NOK (optional)
• Coating: painted, zinc-plated or powder-coated
• Customization: stroke, ports, mounts, threads, seal kits

Advantages

• Rigid face-mount minimizes side loads and maintains alignment
• Suitable for heavy-duty and large-cylinder applications
• Designed for integration with sensors and feedback systems
• Modular options for OEM adaptation and space optimization
• Competitive cost-to-performance for industrial use

Typical applications

• Hydraulic presses and forming machines
• Construction and earth-moving equipment
• Lifting platforms and hoists
• Steel cutting, bending and shearing machines
• Industrial automation and assembly lines
• OEM and special-purpose machinery

Customization & integration

• Tailored stroke, bore and rod dimensions to match force and travel requirements
• Porting and thread options for system compatibility
• Compatibility with sensors, limit switches and mounting brackets
• Optional seal kits and coatings for environment-specific protection
