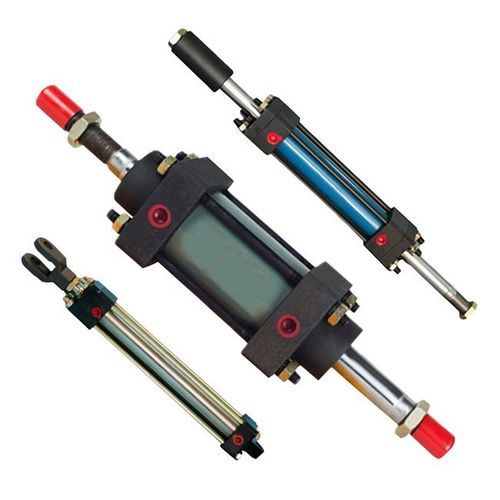

Hydraulic cylinder

tie-rodpistonsingle-acting

Product Overview
Tie-Rod Type Single-Acting Hydraulic Cylinder delivers a compact, service-friendly solution for systems requiring force in one direction. The piston extends under hydraulic pressure while return is provided by gravity, external load or spring. Tie rods secure the end caps to the barrel for robust mechanical integrity and simplified maintenance, making this cylinder suitable for OEM integrations and space-constrained installations.

Model & Brand

• Model: Tie-Rod Type
• Brand: EAST AI

Key Technical Features

• Type — Single Acting, Tie-Rod Type
• Bore Size — 25 mm – 200 mm
• Stroke Range — 50 mm – 2000 mm
• Max Pressure — Up to 210 bar (3050 PSI)
• Rod Type — Chrome-plated, polished steel
• Tube Material — Precision honed carbon steel
• Surface Finish — Painted / Black oxide / Zinc-plated
• Mounting Styles — Clevis, Flange, Trunnion, Cross Tube
• Seal Options — Hallite / Parker / NOK
• Fluid Compatibility — Hydraulic oil ISO VG 32–68

Why Choose a Tie-Rod Type Single Acting Hydraulic Cylinder?

• Serviceable Design: Easily dismantled for seal replacement and routine maintenance.
• Compact Footprint: Designed for installations with limited space and for small OEM assemblies.
• Reliable Mechanical Integrity: Tie-rod construction provides strong end-cap retention and straightforward rebuilds.
• Simplified System Requirements: Single hydraulic port operation reduces circuit complexity for one-direction actuation.
• Standardised Supply: Commonly stocked and produced by suppliers for rapid delivery.

Common Applications

• Agricultural machinery (sprayers, tillers, plows)
• Dump trailers and tilting beds
• Mobile equipment such as lift gates or compact cranes
• Presses, punching tools with return springs
• Material handling arms
• Light automation in factory equipment

Customer Benefits

• Cost-effective choice for low to medium duty cycles
• Easy to repair and rebuild — no welding required for end-cap service
• Available in standard or custom stroke lengths to fit application needs
• Quick lead times from experienced suppliers
• Custom mounting and port configurations available on request

Technical Specifications

• Type: Single Acting, Tie-Rod Type
• Bore Size: 25 mm – 200 mm
• Stroke Range: 50 mm – 2000 mm
• Max Pressure: Up to 210 bar (3050 PSI)
• Rod Type: Chrome-plated, polished steel
• Tube Material: Precision honed carbon steel
• Surface Finish: Painted / Black oxide / Zinc-plated
• Mounting Styles: Clevis, Flange, Trunnion, Cross Tube
• Seal Options: Hallite / Parker / NOK
• Fluid Compatibility: Hydraulic oil ISO VG 32–68
• Brand: EAST AI
• Model: Tie-Rod Type
