Hydraulic cylinder

with piston rodsingle-actingdouble-acting

Product Overview

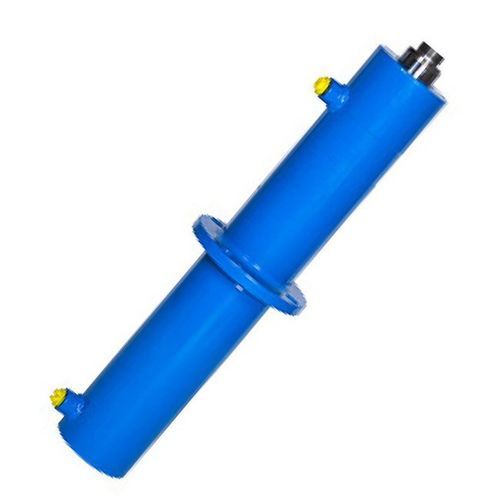

Center Flange Mounted Cylinder is a space-efficient actuator offering stable central mounting. Known for its durability, Center Flange Hydraulic Cylinder Compact Design is ideal for OEMs and mobile equipment requiring precise linear force. The center flange locates on the middle of the barrel body to provide balanced force distribution, excellent axial alignment and superior stability in dynamic applications.

Model / Brand

• Model: Flange Type
• Brand: EAST AI

Detailed Description
The center flange allows the cylinder to be securely fixed at its midpoint while the piston extends and retracts symmetrically on either side. It is especially suited for mobile equipment such as lifting platforms, vehicle-mounted systems and construction tools where space-saving and centralized control are key. The compact design supports horizontal or vertical use in confined environments. Available in single-acting or double-acting configurations for long service life and smooth performance under continuous load.

Key Features

• Centralized Load Distribution
  The center flange design evenly distributes mechanical load, reducing bending stress on both ends.
• Space-Efficient Configuration
  Flange mounting in the middle of the body supports tight installations in compact design systems.
• Symmetrical Stroke Motion
  Ideal for precise control in mobile equipment like dump trailers or stabilizers.
• Stable Mounting
  Center flange prevents vibration and side load, ensuring smooth operation and reduced component wear.
• Customizable Dimensions
  Bore, stroke, thread and port direction can be tailored to system requirements.

Where It's Used

• Mobile lifting platforms
• Truck-mounted cranes and stabilizers
• Road construction rollers and pavers
• Industrial presses and automated handling lines
• Trailer tilting mechanisms

Technical Specifications

• Product Type: Center Flange Mounted Hydraulic Cylinder
• Mount Type: Mid-barrel (center) flange
• Bore Range: 40 mm – 250 mm
• Stroke Range: 50 mm – 2000 mm (customizable)
• Operating Pressure: Up to 300 bar
• Rod Material: Induction hardened & chrome-plated steel
• Barrel Material: ST52/20# high-strength seamless steel
• Seal Options: Hallite, Parker, NOK high-pressure seals
• Action: Single-acting or Double-acting
• Applications: Industrial equipment, mobile machinery, presses
