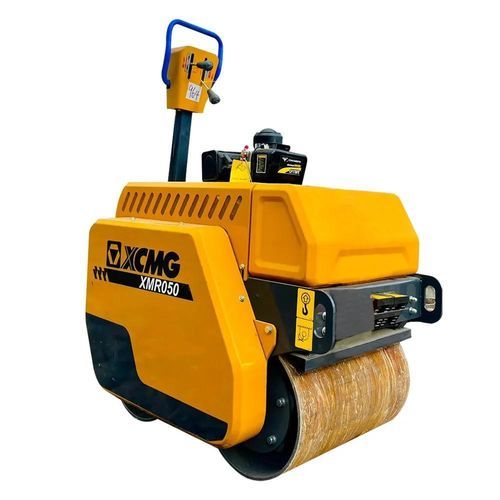

Duplex road roller XMR050

manual

Product Details - Weight: 530 kg - Dimensions (L*W*H): 2450x780x1100 mm - Power: 4 KW - Model Number: XMR050 - Brand Name: XCMG - Place of Origin: Xuzhou, Jiangsu, China - Travel Speed: 0-4 km/h - Gradeability: 30% - Vibration Frequency: 75 Hz - Exciting Force: 20 kN - Drum Width: 600 mm - Amplitude: 0.5 mm - Driving Mode: Hydraulic drive - Electrical System: 12 V - Engine Brand and Type: Changfa CF178FE - Power/Speed: 4 kW / 3600 rpm - Fuel Tank: 3.5 L - Hydraulic Oil Tank: 16 L - Water Tank: 16 L - Overall Dimensions: 2450x780x1100 mm Summary - Specially designed for operation in narrow spaces with an integral frame structure, short machine width, and ultimate lateral overhang for flexible and wide application in narrow areas. - Small amplitude, ultra-high frequency vibration, and high exciting force. - Bi-directional hydraulic drive system with drive speed ranging from 0 km/h to 4 km/h. - Vibration system uses electromagnetic clutch to control the start/stop of vibration. - Gravity sprinkler and bidirectional scraper avoid adhesion of compacted materials, improving surface quality. - Foldable propel lever for easier transfer. - 75 Hz frequency vibration and high excitation force ensure high compaction efficiency and deep influence. - Changfa diesel engine with electric start and recoil manual start; powerful and time-saving. - Comfortable and simple to use, electromagnetic clutch control, transmitting high torque and power. - Excellent control performance, easy steering, enabling pivot steering. Key Features - Hand operated, double drum, mini road roller compactor - High compaction efficiency and deep influence - Electric and manual start diesel engine - Hydraulic drive and electromagnetic clutch control - Foldable propel lever for easy transfer Technical Characteristics / Specifications - Weight: 530 kg - Dimensions: 2450x780x1100 mm - Power: 4 kW - Travel Speed: 0-4 km/h - Gradeability: 30% - Vibration Frequency: 75 Hz - Exciting Force: 20 kN - Drum Width: 600 mm - Amplitude: 0.5 mm - Driving Mode: Hydraulic drive - Electrical System: 12 V - Engine: Changfa CF178FE - Fuel Tank: 3.5 L - Hydraulic Oil Tank: 16 L - Water Tank: 16 L
