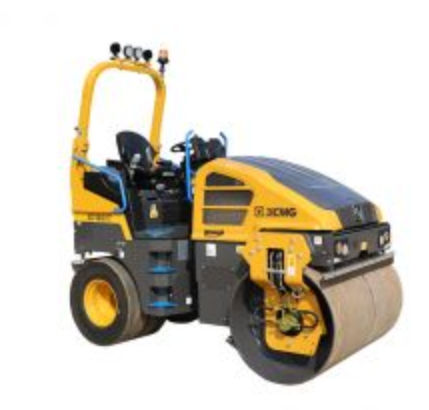

Duplex road roller XD140VT

vibratingarticulated

Overview

• Model: XD140VT
• Brand: XCMG
• Type: Road roller (compactor)
• Use: Suitable for compaction of soil and asphalt in confined areas such as sidewalks, parking lots and residential roads; also for thin lift compaction, municipal maintenance and high-speed line maintenance

Key features

• 4 ton class small double-drum compactor with high-frequency vibration (53/60 Hz)
• 920 mm large-diameter drums for improved compaction quality
• Large-capacity water tank with interval-controlled sprinkling for prolonged operation (235+45 L)
• Maintenance-reducing drum and articulated frame design
• Sliding operation mechanism for convenient edge compaction
• Rated power: 36.8 kW

Commercial / sales information (product page)

• Price range (indicative): $30000.00 - $35000.00
• Warranty: One Year
• Minimum Order Quantity: 1 Unit
• Delivery Time: In stock (within 7 days); Production (15–20 days); Customization (negotiated)
• Shipping support: Sea freight · Land freight · Air freight

Summary

• Operating weight: 4000 kg
• Dimensions (L×W×H): 2910 × 1515 × 2720 mm
• Power: 36.8 kW
• Model number: XD140VT
• Brand: XCMG
• Place of origin: Xuzhou, Jiangsu, China
• Travel speed: 0–12 km/h
• Type: Road roller (double-drum)

Technical table (excerpt)
Content | Unit | Value
Operating weight | kg | 4000
Maximum operating weight | kg | 4300
Front axle weight | kg | 2100
Rear axle weight | kg | 1900
Static linear load | N/cm | 152
Operating speed | km/h | 0-12
Gradeability | % | 30
Minimum turning radius (outer) | mm | 4100
Minimum ground clearance | mm | 350
Wheel base | mm | 1980
Steering angle | ° | ±32
Oscillation angle | ° | ±8
Vibration frequency | Hz | 53/60
Nominal amplitude | mm | 0.5
Excitation force | kN | 42/53
Drum diameter | mm | 920
Drum width | mm | 1380
Engine/transmission reference | - | V28-009
Emission | - | China IV
Rated power | kW | 36.8
Rated speed | r/min | 2400
Fuel tank | L | 55
Water tank | L | 235+45

Notes / Additional description
60 Hz high-frequency vibration option available; large-capacity interval-controlled water tank for effective sprinkling; drum and articulated frame designed to reduce lifetime maintenance; sliding operation mechanism improves edge compaction efficiency.

Technical specifications

• Model: XD140VT
• Operating weight: 4000 kg
• Maximum operating weight: 4300 kg
• Vibration frequency: 53/60 Hz
• Nominal vibration amplitude: 0.5 mm
• Excitation force: 42/53 kN
• Drum diameter: 920 mm
• Drum width: 1380 mm
• Wheel base: 1980 mm
• Travel speed: 0–12 km/h
• Gradeability: 30%
• Minimum turning radius (outer): 4100 mm
• Minimum ground clearance: 350 mm
• Steering angle: ±32°
• Oscillation angle: ±8°
• Rated power: 36.8 kW
• Rated speed: 2400 r/min
• Fuel tank capacity: 55 L
• Water tank capacity: 235+45 L
• Warranty: One Year
