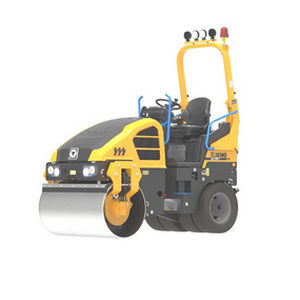

Combination road roller XD120VT

vibratingarticulated

XCMG Official Small Asphalt Double Drum Road Roller XD120VT is a versatile compaction machine featuring a combination of a front drum and rear static tire, allowing for both vibration compaction and surface kneading. It is ideal for operations in confined areas and infrastructure reconstruction and expansion projects. Primarily used for compacting the asphalt top layer of newly constructed pavements, thinner stable soil pavements, and road maintenance work. With its compact structure, high flexibility, minimal blind spots, and high operating comfort, it is perfect for municipal maintenance and highway management. - Weight: 2650 kg - Dimension (L*W*H): 2610*1286*2795 mm - Power: 15 KW - Model Number: XD120VT - Brand Name: XCMG - Place of Origin: Xuzhou, Jiangsu, China - Travel Speed: 0-10 km/h - Type: Road Roller Specifications: - Operating weight: 2650 kg / 5842 lb - Front axle weight: 1350 kg / 2976 lb - Rear axle weight: 1300 kg / 2866 lb - Static linear load: 110 N/cm - Working speed: 0-10 km/h / 0-6 mph - Theoretical gradeability: 30% - Minimum turning radius (internal/external): 2500/3700 mm / 98/146 in - Min. ground clearance: 275 mm / 11 in - Wheel base: 1773 mm / 70 in - Oscillation angle: ±8° - Braking distance (smooth cement pavement): <3.4 m / <134 in - Vibration frequency: 63/67 Hz - Nominal amplitude: 0.5 mm / 0.02 in - Exciting force (High/low frequency): 36/41 kN / 8.1/9.2 kip - Drum diameter: 720 mm / 28 in - Drum width: 1200 mm / 47 in - Charge pressure of drive system: 2.5 MPa / 25 bar - Relief pressure of drive system: 38 MPa / 380 bar - Relief pressure of vibration system: 20 MPa / 200 bar - Relief pressure of steering system: 16 MPa / 160 bar - Rated power: 25 KW / 34 HP - Rated speed: 2400 rpm Technical Features: - Combination of front drum and rear static tire for both vibration compaction and surface kneading - Efficient for limited areas and infrastructure projects - Ideal for asphalt top layer and thin soil pavement compaction - Compact, highly flexible, small blind area, high comfort Technical Specifications (Summary): - Weight: 2650 kg - Dimension (L*W*H): 2610*1286*2795 mm - Power: 15 KW - Travel Speed: 0-10 km/h - Static Linear Pressure: 110 N/cm - Type: Road Roller - Vibration Frequency: 63/67 Hz - Exciting Force: 110 kN - Theoretical Gradeability: 30% - Drum Diameter: 720 mm - Drum Width: 1200 mm - Rated Power: 25 KW / 34 HP - Rated Speed: 2400 rpm
