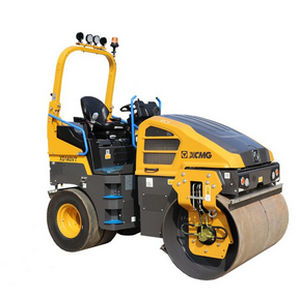

Tandem road roller XD140VT

articulated

XCMG Official 4 Ton High Efficiency Small Compactor Road Roller XD140VT is suitable for compaction of soil and asphalt pavement in narrow areas such as sidewalks, parking lots, and residential roads. It can also be used for compacting thin stable soil layering, making it an ideal compaction equipment for asphalt surface laminating in municipal maintenance and high-speed pipe maintenance. - 60Hz high frequency vibration, 920mm large diameter roller, effectively improve the quality of compaction. - Large-capacity water tank, interval controlled sprinkling for prolonged operation. - Drum and articulated frame are maintenance-free during the whole life cycle. - Sliding operation mechanism for more convenient edge compaction. Specifications: - Weight: 4000 kg - Dimension (L*W*H): 2910 x 1515 x 2720 mm - Power: 36.8 KW - Model Number: XD140VT - Brand Name: XCMG - Place of Origin: Xuzhou, Jiangsu, China - Travel Speed: 0~12 km/h - Type: Road Roller Technical Specifications / Features: - Operating weight: 4000 kg - Maximum operating weight: 4300 kg - Front axle weight: 2100 kg - Rear axle weight: 1900 kg - Static linear load: 152 N/cm - Operating speed: 0-12 km/h - Gradeability: 30% - Minimum turning radius (outer): 4100 mm - Minimum ground clearance: 350 mm - Wheel base: 1980 mm - Steering angle: ±32° - Oscillation angle: ±8° - Vibration frequency: 53/60 Hz - Nominal amplitude: 0.5 mm - Excitation force: 42/53 kN - Drum diameter: 920 mm - Drum width: 1380 mm - Engine Model: V28-009 - Emission: China IV - Rated power: 36.8 KW - Rated speed: 2400 r/min - Fuel tank: 55 L - Water tank: 235+45 L Warranty: One Year After-sales Service: Engineers available to service machinery overseas Minimum Order Quantity: 1 Unit Delivery Time: In Stock (Within 7 days), Production (Within 15 to 20 days), Customization (negotiated delivery time) Shipping: Support Sea freight · Land freight · Air freight
