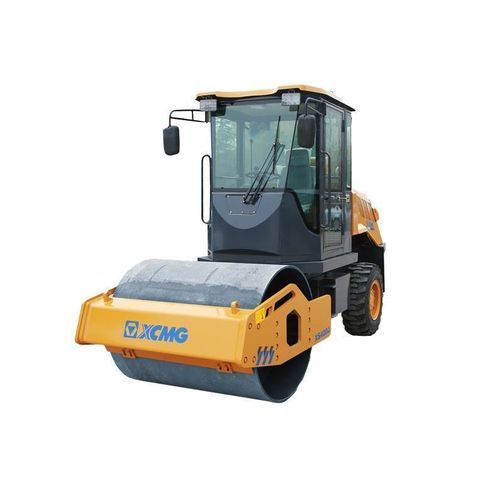

Single-cylinder road roller XS400J

vibrating

XCMG Factory 4 Ton Single Drum Vibratory Road Roller Equipment XS400J for Sale - Closed hydraulic drive system is adopted to realize stepless speed change. - Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product. - The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions. - High frequency vibration and excitation force design, high working efficiency, good compaction effect. - Large ground clearance and curb clearance, strong trafficability, good edge compaction performance. Summary - Weight: 530 kg - Dimension (L*W*H): 2450x780x1100mm - Power (W): 36 KW - Model Number: XS400J - Brand Name: XCMG - Place of Origin: Xuzhou, Jiangsu, China - Travel Speed: 1.8/6.3km/h Specifications - Weight: 530.000kg - Rated speed: 2400r/min - Diesel tank capacity: 60L Model: XS400J - Operating weight: 4000 kg - Front axle weight: 1800 kg - Rear axle weight: 2200 kg - Operating speed: 1.8/6.3 km/h - Minimum turning radius: 4500 mm - Wheelbase: 2230 mm - Excitation force (H/L frequency): 50 kN - Drum diameter: 1000 mm - Drum width: 1270 mm - Engine Model: ZN490B - Rated power: 36 KW - Rated speed: 2400 r/min - Diesel tank capacity: 60 L - Warranty: One Year - After-sales Service: Engineers available to service machinery overseas - Min Order Quantity: 1 Unit - Delivery Time: In Stock (Within 7 days); Production (Within 15 to 20 days); Customization (negotiated delivery time) - Shipping: Support Sea freight · Land freight · Air freight - Payment Method: Multiple options supported Technical Specifications / Features - Model: XS400J - Operating weight: 4000 kg - Front axle weight: 1800 kg - Rear axle weight: 2200 kg - Operating speed: 1.8/6.3 km/h - Minimum turning radius: 4500 mm - Wheelbase: 2230 mm - Excitation force (H/L frequency): 50 kN - Drum diameter: 1000 mm - Drum width: 1270 mm - Engine Model: ZN490B - Rated power: 36 KW - Rated speed: 2400 r/min - Diesel tank capacity: 60 L
