Pneumatic tired road roller XD120VT

combinationvibrating

Overview

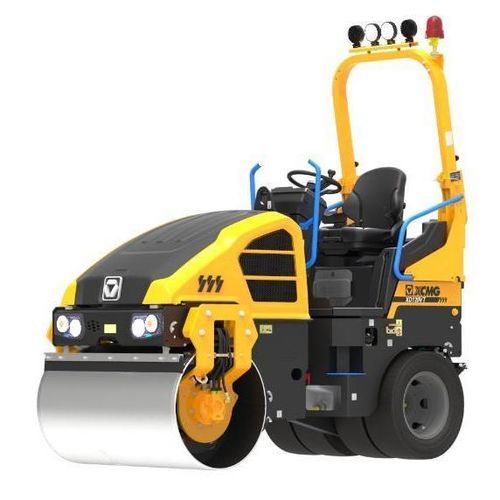

The XCMG XD120VT is a vibratory combination road roller featuring a front steel drum and a rear static tyre. Designed for efficient compaction in confined areas, urban maintenance and pavement reconstruction, it delivers vibration compaction and surface kneading for asphalt top layers and thinner stabilized soil layers. Compact dimensions and high maneuverability make it suitable for municipal and highway maintenance tasks.

Applications

• Compaction of asphalt wearing courses on new pavements and overlays
• Road maintenance and repair in urban and highway environments
• Compaction in confined sites and infrastructure reconstruction/expansion

Key specifications

• Model: XD120VT
• Operating weight: 2650 kg (2.65 t)
• Rated power: 25 kW
• Drum width: 1200 mm
• Drum diameter: 720 mm
• Vibration frequency: 63/67 Hz
• Nominal amplitude: 0.5 mm
• Exciting force: 110 kN
• Travel/working speed: 0–10 km/h
• Theoretical gradeability: 30%
• Minimum ground clearance: 275 mm
• Wheelbase: 1773 mm

Specifications (detailed)

• Operating weight: 2650 kg
• Front axle weight: 1350 kg
• Rear axle weight: 1300 kg
• Static linear load: 110 N/cm
• Minimum turning radius (internal/external): 2500/3700 mm
• Oscillation angle: ±8°
• Braking distance (smooth cement pavement): <3.4 m
• Rated speed: 2400 r/min
• Drive system charge pressure: 2.5 MPa; relief: 38 MPa
• Vibration system relief pressure: 20 MPa; Steering relief: 16 MPa

Additional product details

• Warranty: One Year
• After-sales service: Engineers available for overseas service; online and video support available
• Minimum order quantity: 1 unit
• Delivery time: In stock (within 7 days); Production (15–20 days); Customization (negotiated)
• Shipping: Sea freight, land freight, air freight supported
• Payment: Multiple payment methods supported
