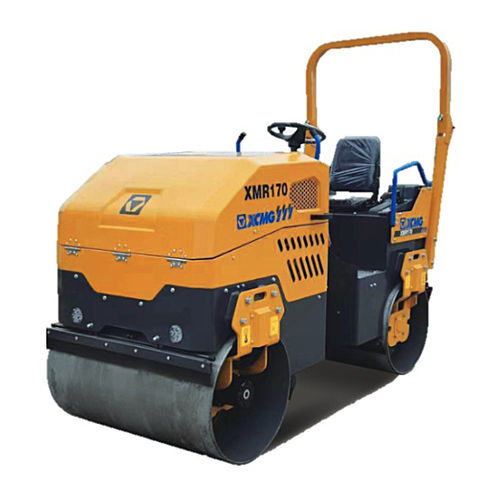

Tandem road roller XMR170

duplexvibratingarticulated

Product Overview

• Double-drum vibratory road roller XMR170 designed for compaction in narrow spaces, featuring articulated steering, small amplitude, ultra-high frequency vibration and high centrifugal force.
• Double-drum hydraulic drive with stepless speed control (0–12 km/h) for continuous traction and gradeability.
• Hydrostatic vibration system with gear pump, vibration valve and vibration motor for stable and controllable compaction performance.
• Electric water sprinkling system with two-way scraper to prevent material adhesion and ensure uniform surface finish; ON/OFF switch for drum watering.
• Compact chassis and small turning radius for high maneuverability in confined job sites.
• Easy maintenance: large engine hood opening and accessible service points; imported NSK vibration bearings for improved reliability.

Summary

• Weight: 1680 kg
• Overall dimensions (L×W×H): 2400 × 1120 × 1685 mm
• Power: 28.5 kW (Changchai ZN390B)
• Model: XMR170
• Brand: XCMG
• Place of Origin: Xuzhou, Jiangsu, China
• Travel speed: 0–12 km/h
• Working width: 1000 mm
• Drum diameter: 610 mm

Specifications (short)

• Operating weight: 1680 kg
• Drum diameter: 610 mm
• Centrifugal force: 30 kN
• Wheelbase: 1636 mm
• Minimum ground clearance: 300 mm
• Vibration frequency: 70 Hz
• Nominal amplitude: 0.5 mm

Technical table (key items)
Item | Unit | XMR170
Operating weight | kg | 1680
Front axle weight | kg | 920
Rear axle weight | kg | 760
Static linear load | N/cm | 100/83
Operating speed | km/h | 0-12
Gradeability | % | 30
Minimum ground clearance | mm | 300
Wheelbase | mm | 1636
Vibration frequency | Hz | 70
Nominal amplitude | mm | 0.5
Centrifugal force | kN | 30
Drum diameter | mm | 610
Working width | mm | 1000
Model (engine) | - | Changchai ZN390B
Rated power | kW | 28.5
Rated speed | r/min | 2600

Features / Technical specifications

• Type: Double-drum vibratory road roller for narrow-space operations with high maneuverability
• Key systems: double-drum hydraulic drive, hydrostatic vibration system, electric sprinkling with two-way scraper
• Controls: infinite speed, ON/OFF sprinkler switch
• Maintenance: easy-access service points, imported NSK vibration bearings
• Warranty: One Year
• After-sales service: engineers available for overseas service
• Minimum order quantity: 1 unit
• Delivery time: In stock (within 7 days); Production (15–20 days); Customization: negotiable
• Shipping: sea, land, air freight supported
