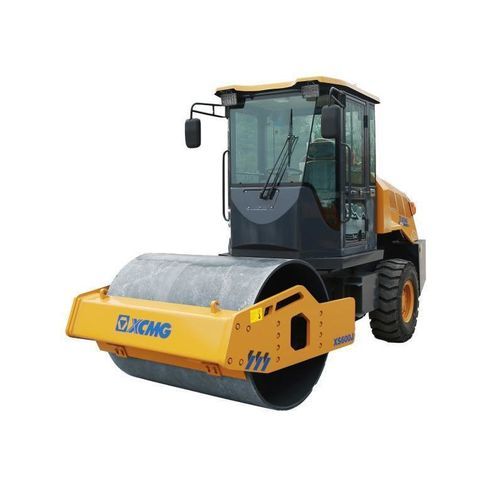

Single-cylinder road roller XS600J

vibratingarticulated

XCMG Factory 6 Ton Vibratory Small Roller XS600J Single Drum Road Roller XS600J is a 6 ton mechanical single drum vibratory roller featuring mechanical driven rear wheel, hydraulic vibration of front drum and hydraulic steering, etc. It is predestined for applications in compacting base layers and hydraulic bound layers and filling materials as well as pebbles, sandy soils, moraine, blasting rocks and cohesive soils in small and medium job sites. Due to its high flexibility and maneuverability, performing unique superiority in limited working site and trench fill foundations. The machine is powered by Changchai ZN490B four-cylinder water-cooled engine, suitable for working conditions above -10℃ and below 2000 meters, and complies with China Stage Ⅲ emission standards. Changchai diesel engine provides high power and easy starting performance. Rear axle provides high traction torque allowing operation at high inclinations. No-clutch design, easy to operate, effectively reduces labor intensity. Power shift box has compact structure for accessible maintenance. - Summary - Weight: 6000 kg - Dimension (L*W*H): 2450x780x1100mm - Power: 36 KW - Model Number: XS600J - Brand Name: XCMG - Place of Origin: Xuzhou, Jiangsu, China - Travel Speed: 2.1/7.2 Km/H - Type: Road Roller - Specifications - Operating weight: 6000 kg - Front axle weight: 2400 kg - Rear axle weight: 3600 kg - Static linear load: 160 N/cm - Operating speed: 2.1/7.2 km/h - Theoretical gradeability: 35% - Minimum turning radius: 5000 mm - Minimum ground clearance: 280 mm - Wheelbase: 2380 mm - Steering angle: ±20° - Oscillation angle: ±5° - Vibration frequency: 50 Hz - Nominal amplitude: 0.5 mm - Excitation force (H/L frequency): 78 kN - Drum diameter: 1060 mm - Drum width: 1450 mm - Engine Model: Changchai ZN490B - Engine Type: Inline four-cylinder water-cooled, Diesel Engine - Rated power: 36 KW - Rated speed: 2400 r/min - Key Features - Mechanical driven rear wheel - Hydraulic vibration of front drum - Hydraulic steering - High flexibility and maneuverability - Suitable for compacting base layers, hydraulic bound layers, pebbles, sandy soils, moraine, blasting rocks, and cohesive soils - Ideal for small and medium job sites, limited working sites, and trench fill foundations - Changchai ZN490B four-cylinder water-cooled diesel engine - Complies with China Stage Ⅲ emission standards - High power, easy starting, high traction torque - No-clutch design, easy operation, reduced labor intensity - Compact power shift box for easy maintenance
