Ceramic insulator

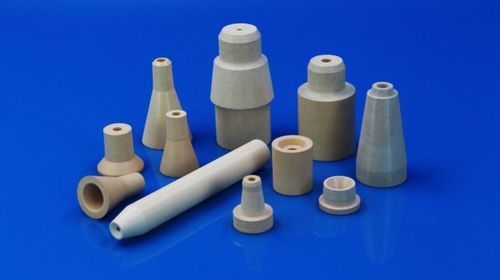

Product Overview Magnesium Stabilized Zirconia (MSZ) is a refractory ceramic material capable of withstanding ultra-high temperatures up to 2200°C. It is primarily composed of zirconium oxide (≥95%) and is distinct from white zirconia ceramics (Y2O3 partially stabilized zirconia). MSZ is characterized by its yellow color and porosity, and is available in two types: one with low porosity (density ≤5.2 g/cm3) and one with higher porosity (density 5.4-5.6 g/cm3). Both types can be used in air, vacuum, or protective atmosphere environments.

Material Data Sheet
Property
Item
Units
MSZ-H
MSZ-L
Composition
ZrO2
%
≥95
≥95
Al2O3
%
≤0.2
≤0.2
SiO2
%
≤0.4
≤0.4
MgO
%
≤2.9
≤2.9
Fe2O3
%
≤0.1
≤0.1
TiO2
%
≤0.1
≤0.1
Physical
Color

Yellow
Yellow
Density
g/cm3
≤5.2
≤5.4-5.6
Porosity
%
≤18.5
≤8

Features

• High erosion and wear resistance
• High thermal shock resistance
• Metal corrosion resistance at high temperatures
• Long service life
• High strength

Application Fields

• Metal powder industry: gas atomizing nozzle and setter plate
• Precious metal smelting industry: ceramic crucible
• High-temperature melt flow control components: sizing nozzles, ladle skateboard panels, converter slag blocking slide plates, and rings

Characteristics / Technical Specifications

• Maximum operating temperature: up to 2200°C
• Main composition: ≥95% ZrO2, ≤2.9% MgO, ≤0.2% Al2O3, ≤0.4% SiO2, ≤0.1% Fe2O3, ≤0.1% TiO2
• Color: Yellow
• Density: MSZ-H ≤5.2 g/cm3, MSZ-L 5.4-5.6 g/cm3
• Porosity: MSZ-H ≤18.5%, MSZ-L ≤8%
• Usable in air, vacuum, or protective atmosphere
