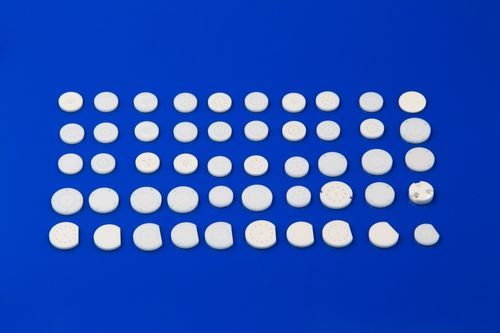

Ceramic rod

zirconiainsulationwear-resistant

Zirconia ceramics (ZrO₂) possess exceptional physical, chemical, and biological properties, making them an ideal material for various medical applications. The following summarizes their core properties and typical applications. - Excellent Biocompatibility - Non-toxic and non-allergenic: Zirconia does not produce rejection reactions with human tissues and does not release harmful ions, unlike certain metal alloys such as nickel-chromium. - Chemically inert and stable: It will not corrode or degrade in the physiological environment (more reliable than absorbable materials), allowing for safe long-term implantation in the human body. - Application Case: The incidence of tissue inflammation around zirconia implants is 60% lower than that around titanium alloy implants in dental applications. - Mechanical Performance Advantages - Characteristics: Flexural strength 900–1200 MPa, Hardness (Vickers) 1200–1400 HV, Elastic modulus 200–210 GPa - Medical Significance: Withstand high-frequency operation of surgical instruments, maintain sharpness of surgical tools (e.g., surgical blades), similar to bone, reduces stress shielding in orthopedic implants - Application Cases: Artificial hip joint femoral head (wear rate < 0.1 mm/year), Minimally invasive surgical forceps (service life three times longer than stainless steel) - Chemical Stability - Corrosion resistance: Excellent resistance to body fluids and disinfectants such as hydrogen peroxide and ethylene oxide. - High-temperature stability: It can be safely used in 134°C sterilization, performing better than polymer-based instruments. - Application Case: Used in laparoscopic and robotic surgical instruments, such as electrodes and surgical forceps, where corrosion resistance and insulation minimize tissue adhesion and enhance surgical precision. - Laparoscopic instruments show no performance degradation after 500 sterilization cycles. - Functional Properties - Electrical insulation: Suitable for high-frequency electrosurgical scalpels and ultrasonic knife heads to prevent current leakage. - Low thermal conductivity: Reduces thermal damage to surrounding tissues during energy-based surgical procedures. - Surface modification: Polishing (Ra < 0.05 μm) or coating can reduce bacterial adhesion by up to 70%. - Application Case: In high-frequency electrosurgical scalpels and ultrasonic knife heads, zirconia’s insulation and high-temperature resistance optimize device performance and minimize thermal damage to tissues. Key Technical Specifications: - Material: Zirconia ceramics (ZrO₂) - Flexural strength: 900–1200 MPa - Vickers Hardness: 1200–1400 HV - Elastic modulus: 200–210 GPa - Corrosion resistance: Excellent against body fluids and disinfectants - High-temperature sterilization: Up to 134°C - Surface roughness (polished): Ra < 0.05 μm - Biocompatibility: Non-toxic, non-allergenic, chemically inert - Applications: Dental implants, orthopedic implants, surgical instruments (forceps, scalpels, electrodes), minimally invasive and robotic surgery tools
