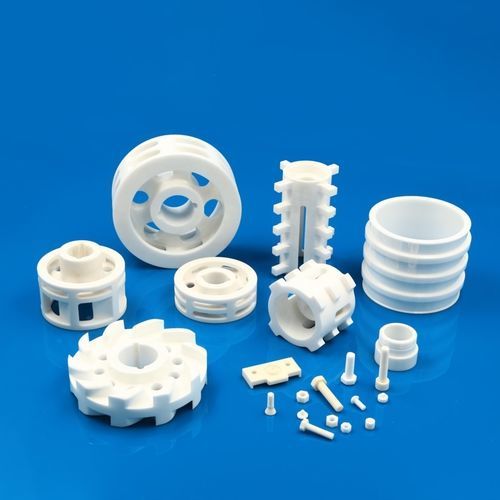

Ceramic plate

roddiskszirconia

Overview
Engineering ceramic components are key components in sand mill equipment due to their high hardness, wear resistance, and corrosion resistance properties. Zirconia (ZrO2) and Silicon Carbide (SiC) ceramic components are used in extreme service that must withstand harsh environments such as high pressure, high speed, and high temperature during the sand grinding process.

Grinding Medium

• High hardness and wear resistance
• Optimal combinations for various sand grinding equipment applications
• Improve grinding efficiency
• INNOVACERA offers a full range of ceramic grinding media

Application

• Paint and Ink: Water-based nano color paste, ink color paste, silicone color paste, special ink
• Industrial Coatings: Water-based industrial topcoat, automotive repair paint, container paint, mechanical topcoat
• Printing Ink: Heat transfer ink, inkjet ink, pigment ink, ceramic ink, UV ink
• Printing Materials: Flexographic ink, gravure printing ink, cardboard ink, thermosensitive paper pulp
• Coating Slurry: Nano alumina slurry, PVDF slurry, slurry, magnesium oxide
• Battery Materials: Carbon nanotubes, graphene, lithium iron, nano silica, conductive carbon black
• Other industries: Nano new materials, nano, chocolate, additives, ATO, MLCC

Applicable Sand Mill Types

• Dispersing Disc Sand Mill: Uses a static centrifugal discharge device; high flow with high efficiency grinding. Suitable for chemical production workshops and products requiring high output, such as agriculture, coatings, paints, inks. Typical grinding capability: 3-5 μm.
• Turbo Nano Sand Mill: Uses a newly designed turbine disperser; offers high grinding efficiency, large output, and low energy consumption.
• Rod Pin Nano Sand Mill: Suitable for ultrafine dispersion and nanoscale grinding of water-based and solvent-based materials. Structure is stable, design is refined, and operation is simple. Cleaning, color change, and bead replacement are convenient.

Technical characteristics / specifications

• Materials: Zirconia (ZrO2), Silicon Carbide (SiC)
• Key properties: high hardness, excellent wear resistance, corrosion resistance
• Designed for extreme service: withstand high pressure, high speed, and high temperature
• Applications cover paints, inks, industrial coatings, printing materials, slurries, battery materials and various nano-materials
• Compatible sand mill types: Dispersing Disc, Turbo Nano, Rod Pin Nano
• Typical achievable grinding size (example for dispersing disc): 3-5 μm
