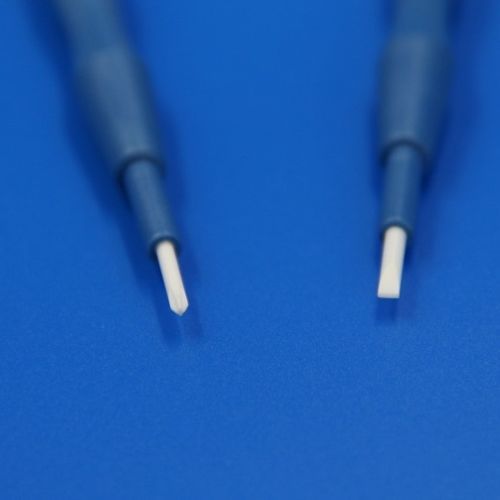

Electronic screwdriver

precisioncruciformflat

Overview
Ceramic alignment screwdriver manufactured from zirconia ceramics. Designed for use where electrical insulation, anti‑magnetic behavior and the absence of eddy currents are required. Suitable for precision adjustment and assembly tasks in electronic and high-frequency applications.

Features

• Anti-static, non-magnetic and non-inductive
• No eddy current loss at high frequency
• Resistant to solder adhesion and to most acids (except hydrofluoric acid)
• Tip temperature resistance up to 700°C (1292°F)
• Easy and precise positioning for adjustment tasks

Application

• High-frequency circuit adjustment and tuning
• Work on SMD components and semi-fixed resistors
• Adjustment of variable resistors, capacitors and inductors
• Precision settings in audio equipment, amplifiers, TV/VCR/DVD, cameras, radio and wireless communication devices, and computers

Regular size (table)
Type | Ceramic Size (mm) | Total Length (mm) (without cap)

• Flathead screwdriver | 0.4×0.9 | 122
• Flathead screwdriver | 0.4×1.2 | 122
• Flathead screwdriver | 0.4×1.8 | 122
• Flathead screwdriver | 0.4×2.0 | 122
• Flathead screwdriver | 0.7×2.4 | 122
• Cross-head screwdriver | 1.2 | 122
• Cross-head screwdriver | 1.7 | 122

Declaration
This is an original article of INNOVACERA®.

Technical specifications

• Material: Zirconia ceramics
• Electrical property: Non-conductive; anti-static; non-magnetic; non-inductive
• High-frequency behavior: No eddy current loss
• Chemical resistance: Resistant to solder adhesion and to most acids (except hydrofluoric acid)
• Tip temperature resistance: Up to 700°C (1292°F)
• Total length (regular size, without cap): 122 mm
• Available tip types: Flathead and Cross-head
• Available ceramic tip sizes (mm): Flathead: 0.4×0.9, 0.4×1.2, 0.4×1.8, 0.4×2.0, 0.7×2.4; Cross-head: 1.2, 1.7
• Typical uses: Precision electronic adjustments, HF tuning, SMD handling
