Current transformer LZZBJ9-35isolationinstrumentmeasurement
Add to favorites
Compare this product
Characteristics
- Type
- current, isolation, instrument, measurement
- Configuration
- cast resin
- Electrical characteristics
- single-phase
- Primary voltage
Min.: 30 kV
Max.: 36 kV
- Secondary voltage
Min.: 0 MV
Description

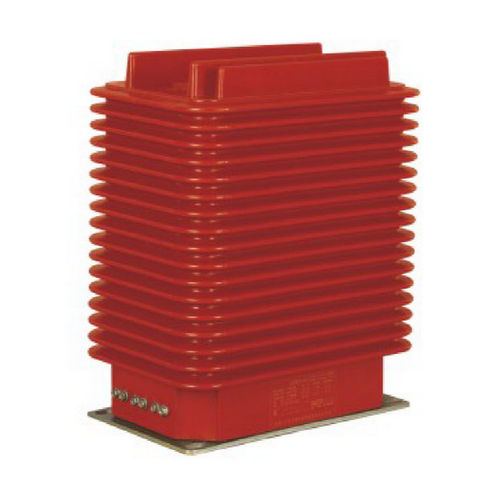

LZZBJ9-35 Indoor current transformer measurement transformer
The LZZBJ9 - 35 indoor current transformer is an electrical equipment with an epoxy resin casting fully - enclosed structure, mainly used for electric energy metering, current measurement and relay protection in the indoor power system with a rated voltage of 35kV and below.
Rated insulation level: 40.5/95/185 kV
Rated frequency: 50Hz/60Hz
Rated secondary current: 5A / 1A
Accuracy class: 0.2(S)/0.5(S)/5P10/10P20
Ambient temperature: -35℃~ +40℃
Installation: Indoor
Remark: The secondary winding can be tapped to obtain different ratios.
