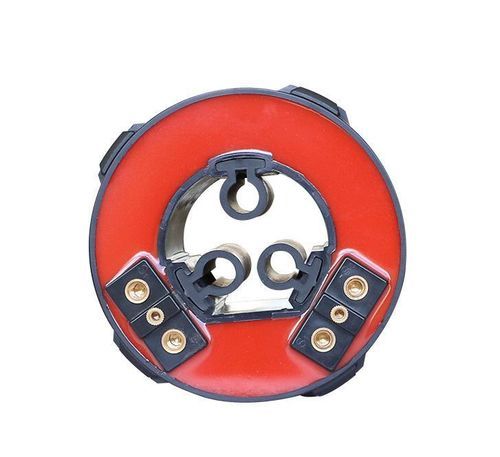

Current transformer LZMK-10measurementinstrumentcast resin
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument, measurement
- Configuration
- encapsulated, cast resin
- Applications
- industrial, for industrial applications, for indoor service, protection, for electrical networks, for electronics, for control cabinets
- Electrical characteristics
- single-phase, medium-voltage, inductive voltage
- Other characteristics
- with copper windings, protection, safety, epoxy resin, high-accuracy, open type, precision, dry type epoxy resin, busbar passing, with two iron cores, cable passing
- Primary voltage
10 kV
- Secondary voltage
Max.: 10 V
Min.: 0.2 V
- Primary current
Max.: 2,000 A
Min.: 5 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
Product Details
The LZMK-10 current transformer maintains accuracy stability between -5~40C through thermally optimized casting structure. Unique magnetic shunt design ensures composite error ≤0.1%, ideal for high-precision energy metering applications.
Key Features
Operating Conditions
Technical Parameters
The LZMK-10 current transformer maintains accuracy stability between -5~40C through thermally optimized casting structure. Unique magnetic shunt design ensures composite error ≤0.1%, ideal for high-precision energy metering applications.
Key Features
- Thermally optimized casting, drift <0.005%/C
- Magnetic shunt technology reduces phase error
- 0.2S class high-precision metering certification
- Moisture/condensation protection (humidity ≤95%)
- Flame-retardant housing (oxygen index ≥35)
Operating Conditions
- Installation: Indoor
- Operating temperature: -5C~40C
- Altitude: ≤1000m
- Structure type: ≤300A semi-enclosed, 400A-1500A single-turn, ≥2000A bus-type
Technical Parameters
- Rated voltage: 10kV
- Rated frequency: 50Hz or 60Hz
- Rated primary current: 5~600A
- Rated secondary current: 5A or 1A
- Accuracy class: 0.2/0.5/10P5/10P10
- Burden: 2.5~5VA
- Rated insulation level: 12kV/42kV/75kV
- Load power factor: cosφ0.8 (lagging)
- Partial discharge: ≤5pC
