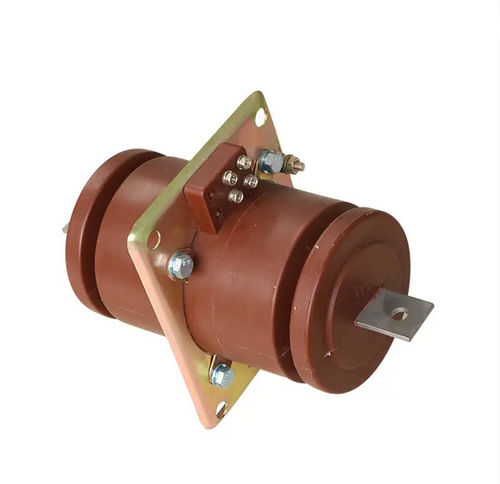

Current transformer LAJ-10cast resinencapsulatedinterior
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated, cast resin
- Applications
- industrial, for indoor service, protection, for electrical networks, interior
- Electrical characteristics
- single-phase, high-voltage, medium-voltage
- Mounting
- through-hole, in-line
- Other characteristics
- protection, safety, epoxy resin, with copper windings, insulated, dry type epoxy resin, busbar passing, cable passing
- Primary voltage
10 kV
- Primary current
Min.: 5 A
Max.: 6,000 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
Product Details
This current transformer features stepped structure design, with semi-enclosed insulation below 300A and single-turn/bus-type fully enclosed structure above 400A for high-current applications. Low-temperature epoxy resin formulation supports operation down to -35.
Features
Operating Conditions
Characteristics / Technical Specifications
This current transformer features stepped structure design, with semi-enclosed insulation below 300A and single-turn/bus-type fully enclosed structure above 400A for high-current applications. Low-temperature epoxy resin formulation supports operation down to -35.
Features
- Stepped structure adapts to different current ratings
- Low-temperature epoxy resin (-35 cold-resistant type)
- Bus-type design for high current (2000~6000A)
- 150% In continuous overload capacity
- Pollution Level II certified
Operating Conditions
- Installation: Indoor
- Operating temperature: -35~40
- Altitude: ≤1000m
- Structure type: ≤300A semi-enclosed, 400A-1500A single-turn, ≥2000A bus-type
Characteristics / Technical Specifications
- Type: Current Transformer
- Model: LAJ-10
- Design: Ximai Electrical
- Indoor installation
- Operating temperature: -35 to 40
- Altitude: ≤1000m
- Structure: Stepped, semi-enclosed or bus-type depending on current rating
- Rated voltage: 10kV
- Rated frequency: 50Hz or 60Hz
- Primary current: 5~6000A
- Secondary current: 5A or 1A
- Insulation level: 12kV/42kV/75kV
- Short-time withstand current: 40kA/1s
- Continuous overload capacity: 150% In
- Pollution Level II certified
