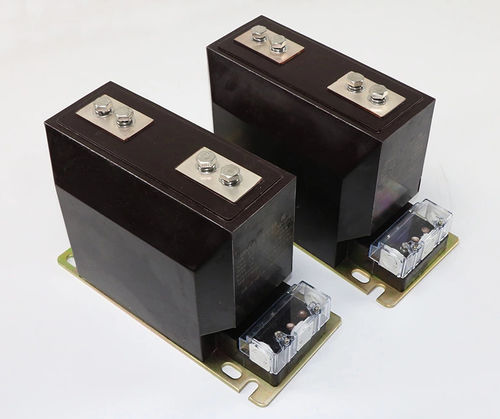

Current transformer LZZBJ9-10instrumentcast resinindustrial
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument
- Configuration
- cast resin
- Applications
- industrial, for industrial applications, for indoor service, protection, for industrial use, for electrical networks, substation, for energy meters, for control cabinets
- Electrical characteristics
- single-phase, medium-voltage
- Mounting
- DIN rail mount
- Norms
- IEC
- Other characteristics
- protection, safety
- Electric power
8 W
Min.: 4 W
Max.: 24 W
- Output power kVA
8 W
(0.010877 hp)Min.: 4 W
(0.005438 hp)Max.: 16 W
(0.021754 hp)- Primary voltage
10 kV
Min.: 6 kV
Max.: 17.5 kV
- Secondary voltage
Min.: 100 V
Max.: 100 V
- Primary current
Min.: 5 A
Max.: 3,000 A
- Secondary current
5 A
Min.: 1 A
Max.: 5 A
- Frequency
50 Hz
Min.: 50 Hz
Max.: 60 Hz
Description
LZZBJ9-10 Indoor current transformer
This type of current transformer is an epoxy resin cast pillar product, suitable for indoor AC 50Hz-60Hz, rated voltage of 10kV and below power lines for current and energy measurement and relay protection. It is installed in mid mounted switchgear and other types of switchgear.
Technical specifications:
Standard: GB20840.1(2,3,4), IEC 61869-2
Rated insulation level: 12/42/75kV
Rated frequency: 50Hz/60Hz
Rated secondary current: 5A / 1A
Ambient temperature: -35℃~ +40℃
Installation: Indoor
Remark: The secondary winding can be tapped to obtain different ratios.
