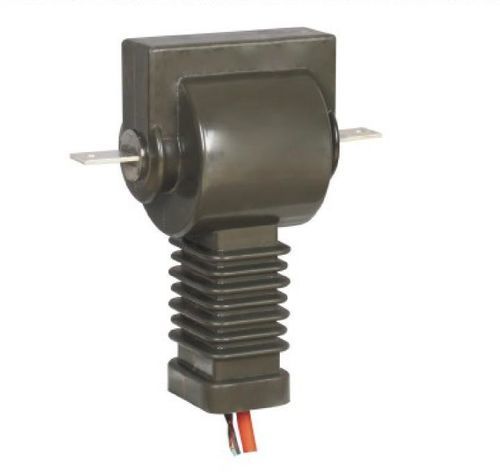

Current transformer LZW32-12measurementinstrumentcast resin
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument, measurement
- Configuration
- encapsulated, cast resin
- Applications
- industrial, for industrial applications, protection, for industrial use, for electrical networks, substation, for outdoor service, exterior, for control cabinets
- Electrical characteristics
- single-phase, high-voltage, medium-voltage, inductive voltage
- Protection level
- IP54
- Other characteristics
- protection, safety, primary, control, epoxy resin, with copper windings, energy-saving, waterproof, dry type epoxy resin
- Output power kVA
Min.: 3.75 W
(0.005099 hp)Max.: 15 W
(0.020394 hp)- Primary voltage
Min.: 10 kV
Max.: 15 kV
10 kV
- Primary current
Min.: 50 A
Max.: 1,000 A
- Secondary current
Min.: 1 A
Max.: 5 A
1 A, 5 A
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
Product Details
This inverted current transformer is designed for 10kV outdoor applications, featuring composite insulation materials for all-weather protection. The unique inverted design lowers the center of gravity, enhancing seismic performance (meets Intensity 8 requirements), especially suitable for earthquake-prone areas.
Operating Conditions
Technical Parameters
This inverted current transformer is designed for 10kV outdoor applications, featuring composite insulation materials for all-weather protection. The unique inverted design lowers the center of gravity, enhancing seismic performance (meets Intensity 8 requirements), especially suitable for earthquake-prone areas.
Operating Conditions
- Installation: Outdoor
- Operating temperature: -40~55
- Altitude: ≤2000m
- Seismic rating: Intensity 8 (0.3g)
Technical Parameters
- Rated voltage: 10~12kV
- Structure type: Inverted
- Rated primary current: 50-1000A
- Rated secondary current: 5A or 1A
- Installation: Outdoor pillar mounting
