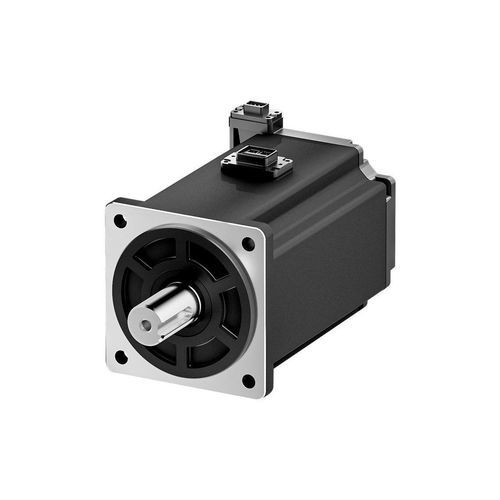

AC servomotor MS6S series

220 Vultra-compactIP67

Overview
MS6S series 80 flange servo motor with ultra-short body, designed for demanding industrial environments. Power range 0.75–1.0 kW. Compatible with DS5 series servo motor.

Product Features

• New matte black finish that lowers perceived surface temperature.
• Upgraded connectors provide IP67 protection for the B3 motor; when used with Xinje high-flexity, oil-resistant cables, resistance to oil contamination is improved.
• Ultra-short body: optimized magnetic circuit reduces motor length by up to ~18% vs B1/B2 types (B3 type).
• Lower winding temperature rise: up to 20 °C reduction compared with the MS5 series.
• Flexible connector orientation: connector direction selectable (positive or negative).
• Optional absolute encoders: 17-bit, 19-bit or 23-bit available.

Characteristics / Technical specifications

• Series: MS6S series
• Commercial designation: MS6S series 80 flange servo motor
• Flange size: 80 mm
• Power range: 0.75 kW – 1.0 kW
• Compatibility: Compatible with DS5 series servo motor
• Protection rating (B3, after connector upgrade): IP67
• Body length: ultra-short design, up to ~18% reduction vs B1/B2 types (B3)
• Winding temperature rise improvement: up to 20 °C lower vs MS5 series
• Connector orientation: selectable (positive or negative)
• Optional encoders: 17-bit, 19-bit, 23-bit absolute encoders
