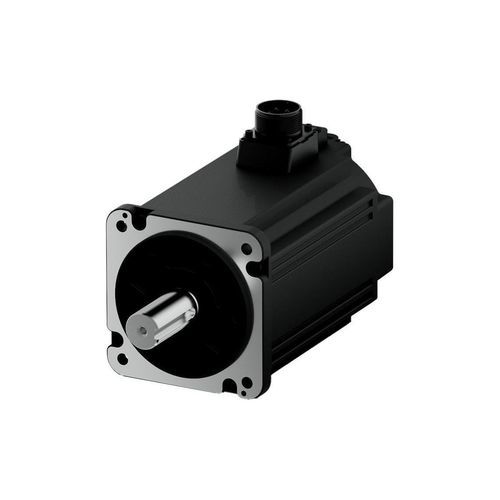

AC servomotor MS6S series

380 VIP67low-inertia

Overview
The MS6S-130 flange servo motor is designed for industrial motion applications requiring low inertia, fast response and high speed. It offers optional 19-bit or 23-bit absolute encoders (single-turn or multi-turn) and an IP67 protection rating for operation in demanding environments. The motor is compatible with DS5C2 / DS5K2 / DS5L2 servo drives in the 3–7 kW range.

Product Features

• Low inertia and fast response
  • Magnetic circuit optimized for reduced inertia
  • Series-wide triple overload capacity
  • Improved dynamic response
• High speed
  • Rated speed: 3000 rpm
  • Maximum speed: 6000 rpm
• High precision
  • Supports 19-bit and 23-bit absolute encoders, available as integrated single-turn or multi-turn options
• Enhanced reliability
  • Front-end cover bearing arrangement with larger bearings for extended service life
• Protection level
  • Optimized motor structure with IP67 protection for use in harsh environments
• Flexible configuration
  • Standard integrated single/multi-turn encoder; switching requires replacement of encoder cable (battery box)
• Easy assembly and maintenance
  • Set screw holes added on the flange surface across the series for convenient mounting
• Wide application scope
  • Suitable for multidimensional industrial motion scenarios

Related compatibility
Compatible with DS5C2, DS5K2 and DS5L2 high-performance servo drives (3–7 kW).

Technical specifications

• Series: MS6S series
• Flange size: 130 (designation)
• Protection rating: IP67
• Rated speed: 3000 rpm
• Maximum speed: 6000 rpm
• Encoder: Optional 19-bit or 23-bit absolute encoder; integrated single-turn or multi-turn options
• Drive compatibility: DS5C2 / DS5K2 / DS5L2 (3–7 kW)
• Design highlights: low inertia, magnetic circuit optimization, triple overload capacity, front-end larger bearings, set screw holes on flange for easy assembly
