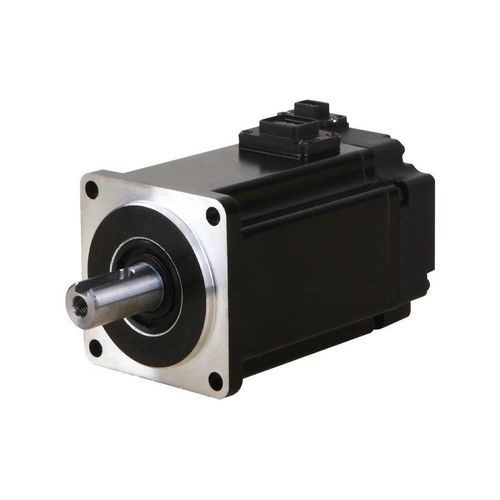

AC servomotor MS6H series

220 Vultra-compactIP67

Product overview
MS6H series 60 flange servo motor. Ultra short body, easy to use. Power range 0.2kW~0.4kW. Compatible with DS5 series servo motor.

Key features

• Smaller size: output remains unchanged while installation space decreases; maximum length reduction up to 18%.
• Lower temperature rise: electromagnetic optimization reduces reactive power loss and typically reduces winding temperature rise by 15-20 °C compared with MS5 series (greater reduction under frequent start/stop or overload conditions).
• High protection level: improved structural design with body protection reaching IP67, suitable for harsh environments.
• Compatible configuration and easy to use: standard single/multi-turn integrated encoder; switching between single-turn and multi-turn requires only replacing the encoder cable (battery box).
• Connector compatibility: motor port uses an Amp connector and is compatible with MS6-B1 series motor adapter cables.
• Compatibility: mechanically/electrically compatible with DS5 series servo motor family.

Related documents (selection)

• MS6 Series Selection and Usage Manual (product selection and usage)
• MS6 Series AC Servo Motors safety User Manual

Technical characteristics / specifications

• Series: MS6H series
• Commercial designation: 60 flange variant
• Power range: 0.2 kW – 0.4 kW
• Protection class: IP67
• Encoder: standard integrated single/multi-turn encoder (switchable by replacing encoder cable/battery box)
• Motor connector: Amp connector
• Compatibility: DS5 series servo motor compatibility; compatible with MS6-B1 adapter cables
• Mechanical form factor: ultra short body (installation length reduced up to 18%)
• Thermal performance: winding temperature rise reduced ~15-20 °C vs MS5 series under comparable conditions
