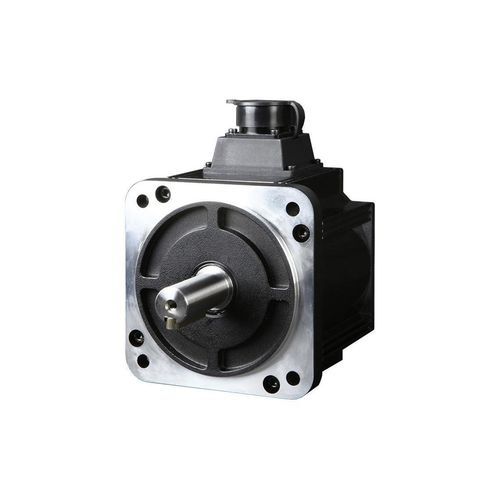

380 V servomotor MS6H series

with brakeIP67high-resolution

Product Overview
MS6H series 130 flange servo motor with power range 0.85 kW–2.3 kW. Compatible with DS5 series servo motors. Suited for industrial motion control applications requiring reduced winding temperature rise, low acoustic noise and enhanced environmental protection.

Key Features

• Low temperature rise and low noise: Electromagnetic optimization reduces reactive power loss; winding temperature rise decreased by approximately 15–20 °C compared with MS5 series.
• High protection capability: Increased enclosure protection up to IP67 for operation in harsh environments.
• High-precision positioning: Support for optional 17-bit, 19-bit and 23-bit absolute encoders.
• Flexible configuration: Optional accessories include power-off brake and oil seal. Low-power variants can be fitted with a B2 small aviation plug interface for improved durability in humid and oily conditions.

Technical specifications

• Series: MS6H
• Flange size: 130
• Power range: 0.85 kW – 2.3 kW
• Compatibility: Compatible with DS5 series servo motors
• Winding temperature rise: Reduced by approximately 15–20 °C vs MS5 series
• Protection level: Up to IP67
• Optional encoders: 17-bit, 19-bit, 23-bit absolute encoders
• Optional accessories: Power-off brake, oil seal, B2 small aviation plug interface (for small power; suited to humid/oily environments)
• Key attributes: Low temperature rise, low noise, high-precision positioning, flexible configuration
