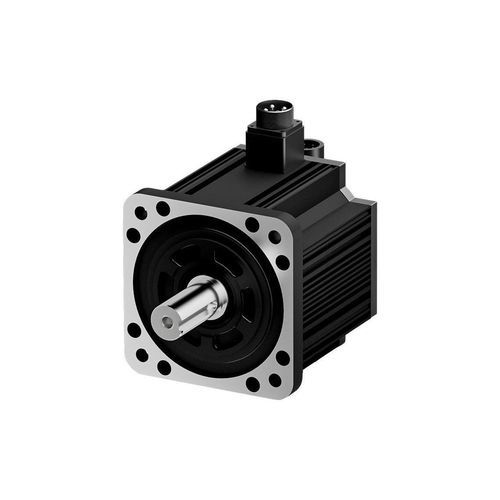

AC servomotor MS6H series

380 Vwith brakeIP67

Overview
MS6H series 180 flange servo motor designed for industrial motion control applications. Low temperature rise and reduced noise with an expanded overspeed capability. Power range 3.0 kW–7.5 kW. Compatible with DS5 series servo motors.

Product features

• Low temperature rise and low noise: Electromagnetic design optimization reduces reactive power loss and lowers winding temperature rise by approximately 15–20 °C compared with MS5 series.
• Wider overspeed range: Can exceed the nominal speed limit by up to 3000 rpm (about 20% higher than MS5 series).
• Improved protection: Protection rating up to IP67 for enhanced resistance in harsh environments.
• High‑precision positioning: Optional absolute encoders available in 17‑bit, 19‑bit or 23‑bit resolutions.
• Flexible configuration: Optional power‑off brake, oil seal and, for small powers, optional B2 small aviation plug interface for durability in humid and oily environments.

Characteristics / technical specifications

• Series: MS6H series
• Designation: 180 flange servo motor
• Power range: 3.0 kW ~ 7.5 kW
• Compatibility: Compatible with DS5 series servo motor
• Temperature rise improvement: Winding temperature rise reduced by approximately 15–20 °C versus MS5 series
• Overspeed capability: Can exceed speed limit by up to 3000 rpm (~20% higher than MS5)
• Protection rating: Up to IP67
• Encoder options: 17‑bit / 19‑bit / 23‑bit absolute encoders (optional)
• Optional features: Power‑off brake, oil seal, B2 small aviation plug interface for humid/oily environments
