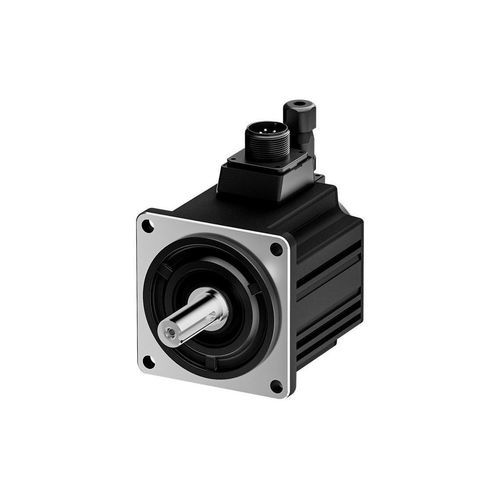

380 V servomotor MS6G series

220 Vwith brakeIP67

Overview
MS6G series 110-flange servo motor. Typical power shown: 1.5 kW. Compatible with DS5 series servo drivers. Designed for reduced winding temperature rise, precise positioning and enhanced protection up to IP67.

Key features

• Low temperature rise: electromagnetic optimization reduces reactive power loss and typically reduces winding temperature rise by approximately 15–20 °C compared with the MS5 series; effect is more pronounced under frequent start/stop or repeated forward/reverse overload conditions.
• Higher protection level: upgraded structural design with maximum body protection rating up to IP67.
• High-precision positioning: optional absolute encoders — 17-bit, 19-bit or 23-bit.
• Flexible configuration and optional accessories: optional power-off brake, oil seal; small-power models can be equipped with a B2 small aviation plug interface to improve durability in humid or oily environments.
• Compatibility: designed for compatibility with DS5 series servo drivers.

Related information from page

• Product tagline: Low temperature rise, high precision, high protection.
• Series positioning: MS6G series 110 flange.
• Power example shown on page: 1.5 kW (series power range reference).

Technical specifications

• Series: MS6G series
• Commercial designation: 110-flange servo motor
• Typical power (example shown): 1.5 kW
• Encoder options: 17-bit / 19-bit / 23-bit absolute encoder (optional)
• Protection rating: up to IP67 (maximum body protection level)
• Thermal performance: winding temperature rise reduced by approximately 15–20 °C vs MS5 series
• Optional features: power-off brake; oil seal; B2 small aviation plug interface for small-power models (suitable for humid/oily environments)
• Driver compatibility: compatible with DS5 series servo drivers
