AC servomotor MS6H series

220 VIP67high-resolution

Overview

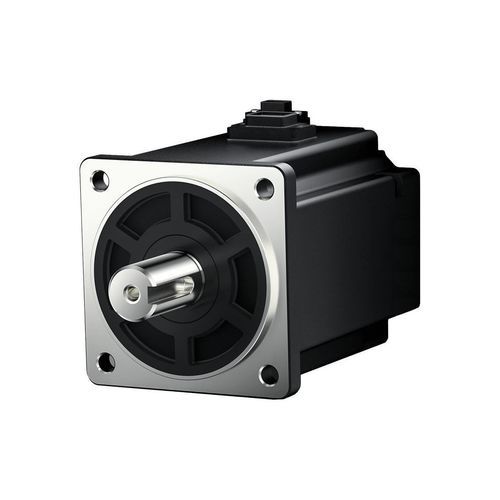

MS6H series servo motor with 80 mm flange, nominal power 0.75 kW, compatible with DS5 series servo motor.

Key features

• Appearance: MS6 B3 motor features a black body with a frosted finish to reduce surface temperature.
• Protection: Upgraded connectors for B3 and B4 reach IP67 rating; recommended Xinje high-flexibility, oil-resistant cables for improved resistance to oil contamination.
• Compact design: Optimized magnetic circuit reduces motor length; B3 type can be up to 18% shorter than B1/B2 types.
• Encoder options: Selectable absolute encoders (17-bit, 19-bit, 23-bit). MS6 B3-S is available with 19-bit or 23-bit encoders to improve low-speed vibration suppression and positioning accuracy.
• Flexible configuration: Connector wiring direction can be positive or negative; MS6 B3-S and B4 motors ship with integrated single-turn or multi-turn encoders — switching modes requires only replacing the encoder cable (battery box).

Compatibility
Compatible with DS5 series servo motor (DS5 servo series compatibility confirmed).

Technical specifications

• Series: MS6H
• Flange size: 80 mm
• Power: 0.75 kW
• Protection: Upgraded B3/B4 connectors rated up to IP67
• Body: Ultra-short B3 type (up to 18% shorter vs B1/B2)
• Encoder: Absolute 17-bit / 19-bit / 23-bit
• Encoder type: Single-turn / Multi-turn integrated (interchangeable via encoder cable / battery box)
• Cabling: Optional wiring direction for connectors; Xinje high-flexibility oil-resistant cables recommended
• Compatibility: Compatible with DS5 series servo motor
