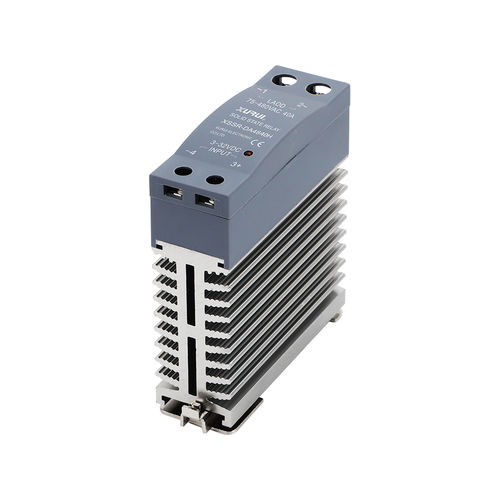

AC solid state relay XSSR-H

compactsingle-phaseDIN rail

Integrated Heatsink Design: Combines the heatsink with the relay body for space-saving, simplified installation. DIN Rail Mounting Structure: Fits standard DIN rails for fast, tool-free snap installation. Optoelectronic Isolation Output: Achieves high dielectric strength ≥2500VAC between input and output, offering strong noise immunity. Built-In Protection Circuitry: Equipped with RC snubber and surge suppression to protect both the load and the relay itself. LED Operation Indicator: Real-time status display facilitates maintenance and fault diagnosis. The XSSR-H series is a modular, DIN rail-mounted single-phase AC solid state relay featuring an integrated heatsink design. Compact and easy to install, it offers optoelectronic isolation output, supports zero-crossing or random trigger modes, and includes built-in RC snubber and surge protection circuits. It is widely used in industrial heating systems, motor control, and automation equipment for AC load control applications. • Industrial temperature control systems (heating plates, hot runners, furnaces) • Single-phase AC motor start, stop, and protection control • Control panels for smart manufacturing where space is limited • Industrial lighting control, capacitive/inductive load switching
