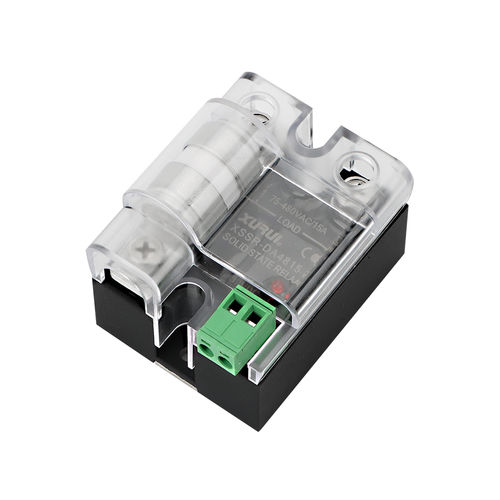

AC solid state relay XSSR-F

single-phasepowersmart

Built-In Fast-Blow Fuse: Provides rapid disconnection under overload conditions to protect both the load and the relay. Integrated TVS Suppression Diode: Absorbs surge voltages to improve overall electrical safety. Optoelectronic Isolation Output Design: Offers ≥2500VAC dielectric strength between input and output for safe operation. Zero Voltage Turn-On: Switches on at zero voltage and off at zero current to minimize electrical stress. LED Indicator + Horizontal Structure: Flexible installation with clear real-time operating status, ideal for panel wiring and cabinet integration. XSSR-F W2 Series Horizontal Single-Phase AC Solid State Relay with Current Protection Overview The XSSR-F W2 series is a horizontal single-phase AC solid state relay featuring integrated current protection. It combines a fast-blow fuse and a TVS (Transient Voltage Suppression) diode to enhance overload and short-circuit protection capabilities. This series is ideal for medium- to high-power industrial control scenarios, such as motor control, heating element protection, and smart power switching. • Overload protection for industrial motors, heaters, and similar equipment • Solid-state circuit breaker protection in automated distribution systems • Sensitive load protection in test benches and aging test equipment • Safety relay and power isolation switching in smart control cabinets • AC systems requiring circuit breaker-like characteristics
