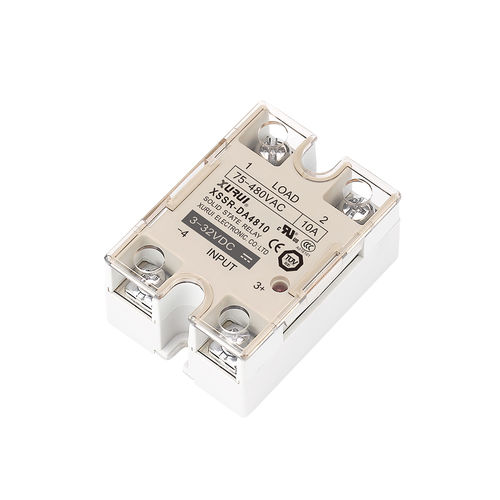

DC solid state relay XSSR-W1

ACcompactSMD

Robust Structure and Easy Installation: Screw mounting design ensures secure installation and long-term reliability in industrial environments. Dual Control Options: Supports DC–AC control (DA type: DC signal controlling AC load) and AC–AC control (AA type: AC signal controlling AC load); DD type models are available for DC load control. High Electrical Isolation and Stable Performance: •AC output types use optoelectronic isolation with a dielectric strength of ≥2500VAC, supporting zero-crossing or random triggering. •DC output types use transformer isolation combined with IGBT output, ideal for high-speed switching applications. SMD Manufacturing Process: Surface mount technology (SMD) enhances product consistency, vibration resistance, and thermal performance. Built-in LED Status Indicator: Integrated LED displays real-time operating status, simplifying commissioning and maintenance. The XSSR-W1 series is a compact, horizontal-structure single-phase solid state relay designed for screw mounting. Available in AC output (DA/AA types) and DC output (DD type) versions, this series offers high reliability, strong insulation, and excellent thermal stability, making it ideal for demanding control applications. Manufactured using SMD technology, the XSSR-W1 series is widely used in automation equipment, heating systems, lighting control, and motor drives. Application Scenarios • Industrial automation control systems • Electric heating equipment and heating elements • Stage lighting control and motor drive systems • Air conditioner and solenoid valve controllers • Intelligent power management systems
