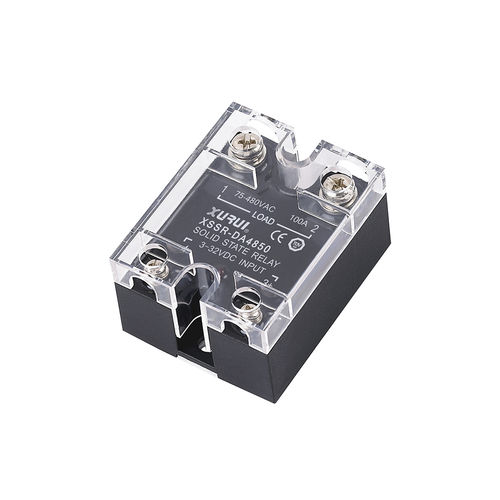

DC solid state relay XSSR-W2

AChigh-performancescrew

Robust Screw-Mount Design: Horizontal layout with secure screw installation ensures long-term stability in industrial environments. Flexible Control Options: • DA Type: DC control for AC load (DC–AC) • AA Type: AC control for AC load (AC–AC) • DD Type: DC control for DC load (DC–DC) Strong Isolation and Fast Response: • AC versions use optoelectronic isolation with dielectric strength ≥2500VAC, supporting zero-crossing or random triggering. • DC versions utilize transformer isolation with IGBT switching devices for fast and stable response. Built-in RC Snubber Circuit for Enhanced Interference Resistance: Effectively reduces surges and electromagnetic interference, improving reliability and extending service life. LED Input Status Indicator: Built-in LED for real-time monitoring of the input signal, simplifying debugging and maintenance. The XSSR-W2 series features a horizontal structure with robust screw mounting, offering high load handling capability and excellent dielectric strength. Available in AC output versions (DA/AA) and DC output versions (DD), the W2 series is ideal for industrial automation, heating systems, lighting control, motor drives, and more. Equipped with an internal RC snubber circuit and LED status indicator, it provides enhanced surge protection and real-time operation monitoring — making it a high-performance, high-reliability solid state relay solution. Application Scenarios • Industrial automation control systems (PLC, I/O modules) • Electrical heating control systems (injection molding machines, hot air blowers) • Stage lighting control and dimming systems • Air compressors, VFD drives, motor soft starters
