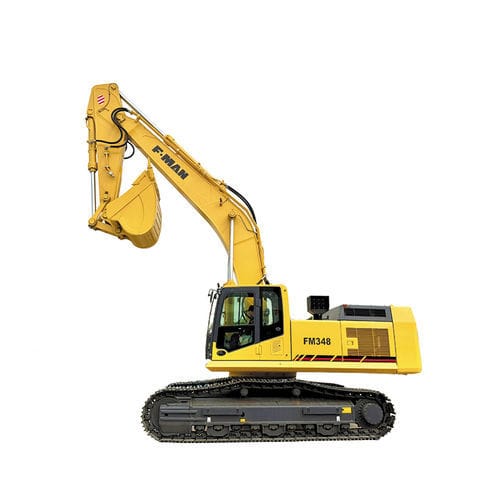

Large excavator FM348

crawlerdieselmining and quarrying

Overview
The FMAN FM348 crawler excavator weighs approximately 48,000 kg and is powered by a Cummins QSM11 engine rated at 280 kW (2100 rpm). Built for high-intensity tasks such as mining, large-scale earthmoving and infrastructure projects, it features a Kawasaki hydraulic system with a K5V200DT main pump (max flow 360 L/min × 2) to ensure responsive control and high operating efficiency. The machine is supplied with a standard 2.3 m³ bucket, reinforced tracked chassis and 600 mm track shoes to enhance stability and mobility on challenging terrain.

Specifications
Machine weight: 48,000 kg
Standard bucket capacity: 2.3 m³
Engine Brand/Model: Cummins QSM11
Displacement: 11 L
Rated power: 280 kW / 2100 rpm
Generator: 24V 70A
Overall length: 12,300 mm
Overall width: 3,340 mm
Boom length: 7,060 mm
Stick length: 2,900 mm
Chassis structure: X-type structure
Hydraulic pump Brand/Model: Kawasaki K5V200DT
Maximum digging height: 10,760 mm
Maximum unloading height: 7,400 mm
Maximum digging depth: 7,320 mm
Maximum vertical digging depth: 6,695 mm

Features

• Cummins QSM11 engine delivering 280 kW for stable power in heavy-duty operations
• Kawasaki hydraulic system with K5V200DT main pump (max flow 360 L/min × 2) for sensitive response and high hydraulic efficiency
• Standard 2.3 m³ bucket for strong digging and loading capability
• Reinforced tracked chassis and 600 mm track shoes to improve stability and maneuverability on rough ground
• Robust structural design with smooth rotation and precise control suitable for mining, quarrying and large engineering projects

Technical specifications

• Machine weight: 48,000 kg
• Standard bucket capacity: 2.3 m³
• Engine: Cummins QSM11, 11 L
• Rated power: 280 kW @ 2100 rpm
• Generator: 24V 70A
• Hydraulic pump: Kawasaki K5V200DT (max flow 360 L/min × 2)
• Overall length: 12,300 mm
• Overall width: 3,340 mm
• Boom length: 7,060 mm
• Stick length: 2,900 mm
• Maximum digging height: 10,760 mm
• Maximum unloading height: 7,400 mm
• Maximum digging depth: 7,320 mm
• Maximum vertical digging depth: 6,695 mm
• Chassis structure: X-type
• Track shoe width: 600 mm (reinforced tracked chassis)
